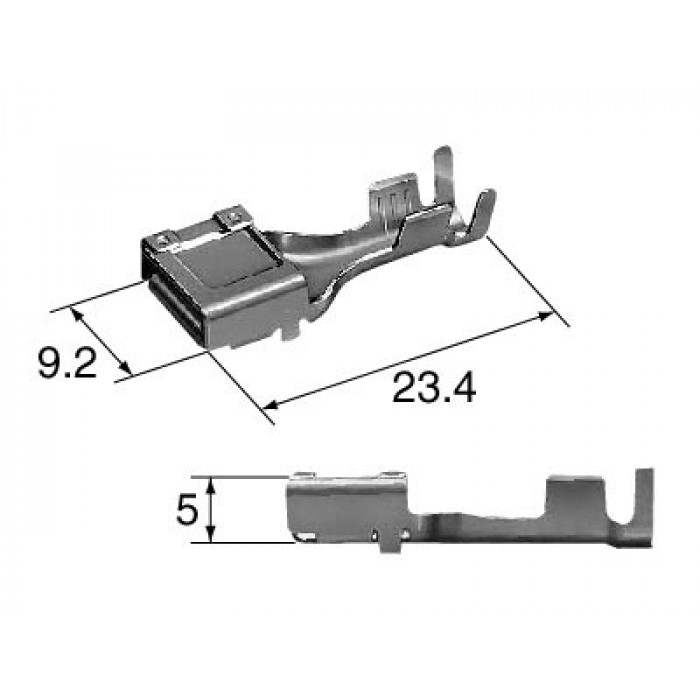

Original Sumitomo 8100-2493

TS series

Terminal For AV Wire

8.0mm(312)

Sealed/Unsealed unsealed

Male/Female F

Tab Size 8.0mm(312)

Size M

Mating parts 8100-0521(TS series/HE series)

Applicable wire size

2.0-3.0mm2

Cable overall diameter (mm) 2.6-4.1

Materials Heat-resistant copper alloy

Surface treatment Tin-plated

Contact resistance

Initial

3mΩ Max.

after durability tests

10mΩ Max.

Leak current 3mA Max.

Insulation resistance 100MΩ Min.
