1-1534229-1 / 4F0 972 708 / 1-1418552-1
1-1534229-1 / 4F0 972 708 / 1-1418552-1
1-1534229-1 / 4F0 972 708 / 1-1418552-1 AMP MQS
Terminals and seals are included

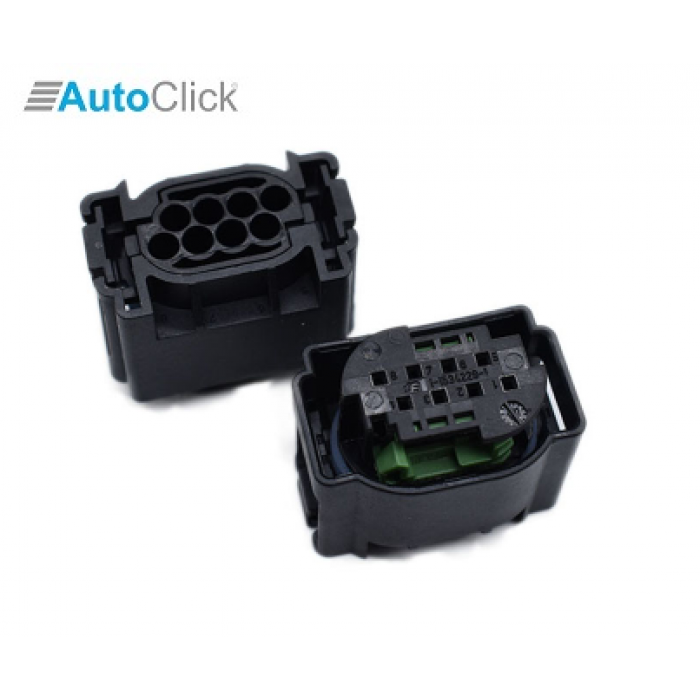

8 Way Automotive Connector
Product Type Features
Connector & Housing Type : Housing for Female Terminals
Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire
Sealable : Yes
Hybrid Connector : No
Primary Locking Feature : On the Terminal
Configuration Features
Number of Positions : 8
Number of Rows : 2
Electrical Characteristics
Operating Voltage (VDC): 50
Nominal Voltage Architecture (V): 12, 24, 42, 48
Body Features
Body Material : PBT GF
Cable Exit Angle : 180°
Primary Product Colour : Black
Connector Code : A
Contact Features
Mating Tab Width : .63 mm [ .025 in ]
Mechanical Attachment
Strain Relief : No
Terminal Position Assurance : Yes
Mounting Feature : Without
Housing Features
Centerline (Pitch) (mm): 2.54
Dimensions
Row-to-Row Spacing : 6.9 mm [ .272 in ]
Product Height : 24 mm [ .945 in ]
Product Length : 31.6 mm [ 1.244 in ]
Product Width : 20.7 mm [ .815 in ]
Usage Conditions
Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
