770680-1

Auto Click™ part23-AC004 RoHS
Genuine TE Connectivity OEM · fully traceable
Auto Click™ price
£6.10 each
416 in stock
Ordering 1,000+? Request an Auto Click™ volume quote
Sold & dispatched by Auto Click™
Free UK delivery £30+
Worldwide shipping daily
30-day returns

Compatible terminals, seals & mating parts

Matched to this housing. Order any quantity, or request a volume quote for 1,000+.

Connectors and housings 1

Related housings in the same family or pin count.

Price isn't everything

This is a genuine TE Connectivity part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.

  • Manufacturer-made
  • Traceable
  • Certificate of Conformity on request
See the risks of copy parts →

Product description

Terminals are not included

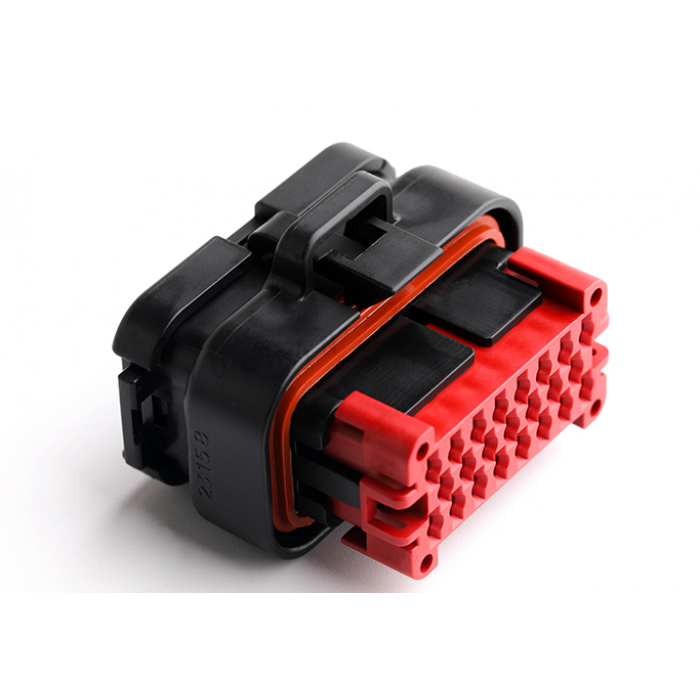

23 Way Automotive Connector

Product Type Features

Connector Shape : Rectangular

Connector & Housing Type : Housing for Female Terminals

Connector System : Wire-to-Board

Sealable : Yes

Hybrid Connector : No

Primary Locking Feature : Integrated in Housing

Configuration Features

Number of Positions : 23

Number of Rows : 3

Electrical Characteristics

Operating Voltage (VAC): 250

Nominal Voltage Architecture (V): 250

Body Features

Cable Exit Angle : 180°

Primary Product Color : Black

Connector & Keying Code : 1

Contact Features

Contact Type : Socket

Contact Size : 1.3mm

Mating Pin Diameter : 1.3 mm [ .051 in ]

Contact Current Rating (Max) (A): 17

Mechanical Attachment

Mating Alignment : With

Mating Alignment Type : Keyed

Strain Relief : Add By Accessory

Connector Mounting Type : Cable Mount (Free-Hanging)

Terminal Position Assurance : Yes

Housing Features

Housing Material : PBT GF

Centerline (Pitch) : 4 mm [ .157 in ]

Dimensions

Row-to-Row Spacing : 4 mm [ .157 in ]

Product Length : 47.4 mm [ 1.866 in ]

Product Width : 33.6 mm [ 1.323 in ]

Connector Height : 34.6 mm [ 1.362 in ]

Usage Conditions

Operating Temperature (Max) : 125 °C [ 257 °F ]

Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Circuit Application : Power & Signal

Industry Standards

UL Flammability Rating : UL 94V-0

Degree of Protection : IP67, IP69K

Packaging Features

Packaging Method : Box & Tray

Packaging Quantity : 140

Other

Connector Position Assurance Capable : Yes
