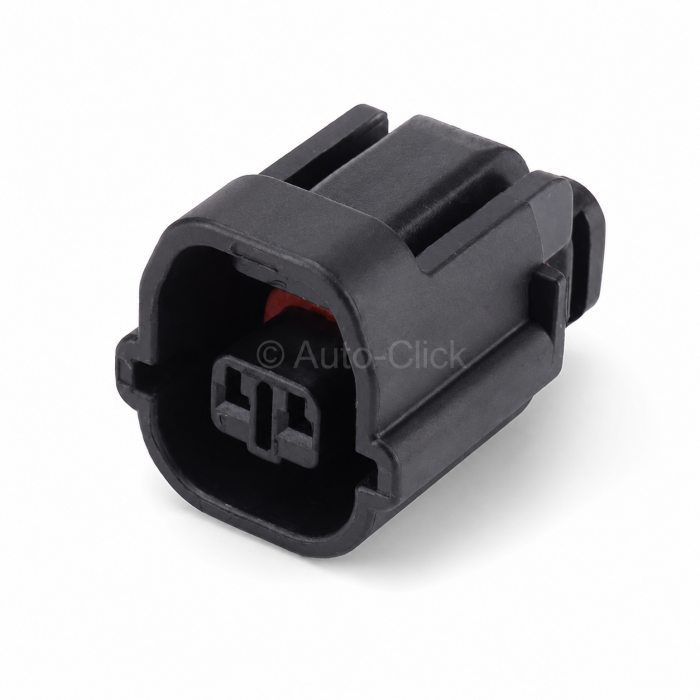

7283-8720-30 / 7157-4601-80
· YAZAKI · Our Part Number: 2-AC373 · In Group Stock
Starting
£2.10
each
exc. VAT
Single unit pricing applies. Contact us for bulk order quotes.
Free UK delivery over £30
Genuine OEM parts
30-day returns
Full traceability
Secure checkout
Accepted:
Product Description
Yazaki 7283-8720-30 / 7157-4601-80 SSD Series
Terminals and seals are included
| Classified Parts | Housing | ||||
|---|---|---|---|---|---|
| Family | SSD Connectors | ||||
| Replacement part number | Mating Part Numbers | 7182-8720-30 | |||
| Connection Type | Wire Harness Connector | Unsealed/Sealed | Sealed | ||
| Male/Female | Female | Number of Poles | 2 | ||
| Tab size (mm) |
| Materials | PBT | ||
| Size (mm) (Outer shape of parts) | Length | 26.00 | Plating | ||
| Width | 18.80 | Color | BLACK | ||
| Height | 18.75 | Hybrid | NO | ||
| Clip installation structure | NO | Application bolt | |||
| Compatible hole size (mm) | Min | Compatible plate thickness (mm) | Min | ||
| Max | Max | ||||
| Electric current classification |
| ||||
| Product standard No. | CE24-EN-0022 | Product Specifications PDF | |||
| Handling manual No. | |||||
Product Specification
| Allowable Current(Ref.) | 5A(Ref) | Low-voltage low-currentresistance | 3milli ohm Max.(Initial) |
|---|---|---|---|
| Insulation resistance | 100Megohm Min.(at 500VDC) | Withstand voltage | 1000V AC (1min.) |
| Temperature Range | -40 to 120deg.C | ||
Application List of Installable Components
| Terminal | 7116-1680-02 7116-1680-08 | Wire seal | 7157-3950-80 7157-3951-60 | |
|---|---|---|---|---|
| Dummy plug | 7157-3952-80 | Installation possible part | 7157-4601-80 | |
