7283-5596-10
Part No2-AC401 OEM Part RoHS Full traceability
We Ship Worldwide — Daily
Tracked international delivery to 190+ countries Secure shipments by UPS/DHL or FEDEX.
| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £3.90 | — |
| 10+ | £3.60 | |
| 100+ | £2.80 | |
| 1000+ | £1.90 |
977 in stock
Starting
£3.90
each
exc. VAT
Volume quotation (1k+)Fast reply from our RFQ team
Volume Quotation (1k+)
Get a quote from our RFQ team — fast reply
Free UK delivery over £30
World-Wide Shipping
30-day returns
Full traceability
Secure checkout
Accepted:
Product Description

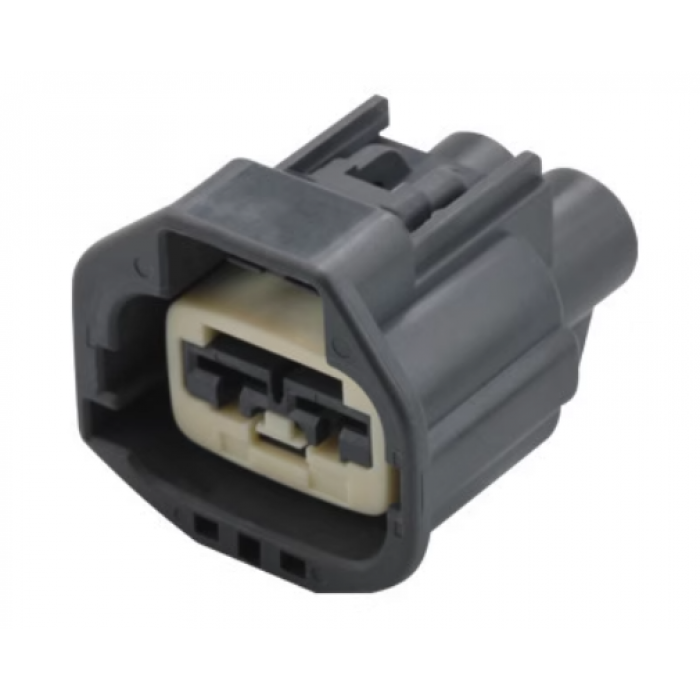

Original Yazaki 7283-5596-10
Terminals and seals are included
| Classified Parts | Housing | ||||
|---|---|---|---|---|---|
| Family | YES/YESC Kaizen Connector 6.3X0.8 | ||||
| Replacement part number | Mating Part Numbers | 7283-5596-10 7283-5928-10 | |||
| Connection Type | Wire to Wire | Unsealed/Sealed | Sealed | ||
| Male/Female | Male | Number of Poles | 2 | ||
| Tab size (mm) |
| Materials | HPA | ||
| Size (mm) (Outer shape of parts) | Length | 49.80 | Plating | ||
| Width | 30.10 | Color | DARK GRAY | ||
| Height | 27.55 | Hybrid | NO | ||
| Clip installation structure | NO | Application bolt | |||
| Compatible hole size (mm) | Min | Compatible plate thickness (mm) | Min | ||
| Max | Max | ||||
| Electric current classification |
| ||||
| Product standard No. | |||||
| Handling manual No. | |||||
Product Specification
| Allowable Current(Ref.) | 30A(Ref) | Low-voltage low-currentresistance | 10milli ohm Max.(Initial) |
|---|---|---|---|
| Insulation resistance | 20Megohm Min.(at 500VDC) | Withstand voltage | 1000V AC (1min.) |
| Temperature Range | -40 to 100deg.C | ||
Application List of Installable Components
| Terminal | 7114-4140-02 7114-4141-02 7114-4142-02 | Wire seal | 7158-3081-50 7158-3082-90 7158-3083 | |
|---|---|---|---|---|
| Dummy plug | 7158-3080-60 | Installation possible part | ||
