YAZAKI 7223-1864-40 · Auto Click™ part 6-AC166
View all Yazaki 58 Connector W Type housings, terminals and seals in the Yazaki Connector Finder →
Matched to this housing. Order any quantity, or request a volume quote for 1,000+.
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
Select by wire outside diameter. Plug any unused cavities.
Terminal and connector position assurance for this housing.
Related housings in the same family or pin count.
Price isn't everything
This is a genuine YAZAKI part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.

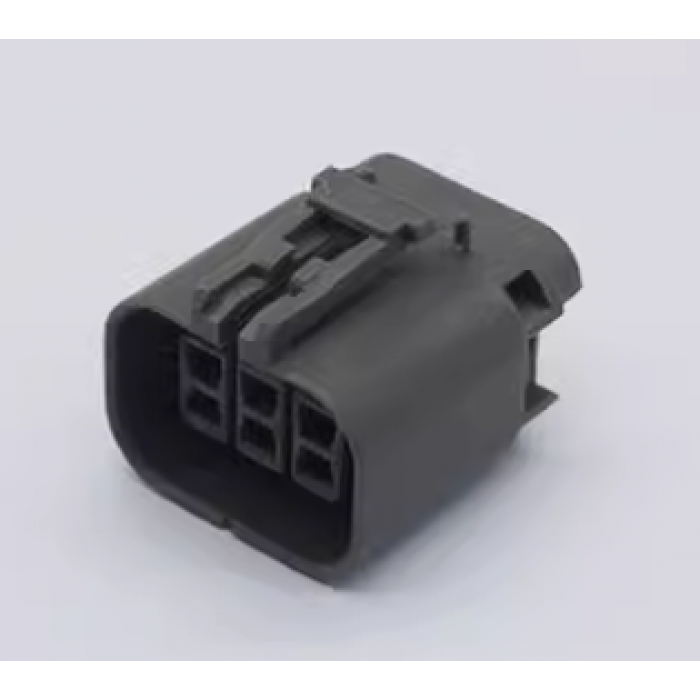

6 Way Automotive Connector
Family 58 Connectors
Type W Type
Yazaki Part Number 7223-1864-40
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Sealed Sealed
Male/Female Female
Number of Poles 6
Tab Width mm (inches) 2.8 (110)
Material Nylon 66
Plating -
Color Light Gray
Rating -
Mating Part Numbers 7122-1864-40
