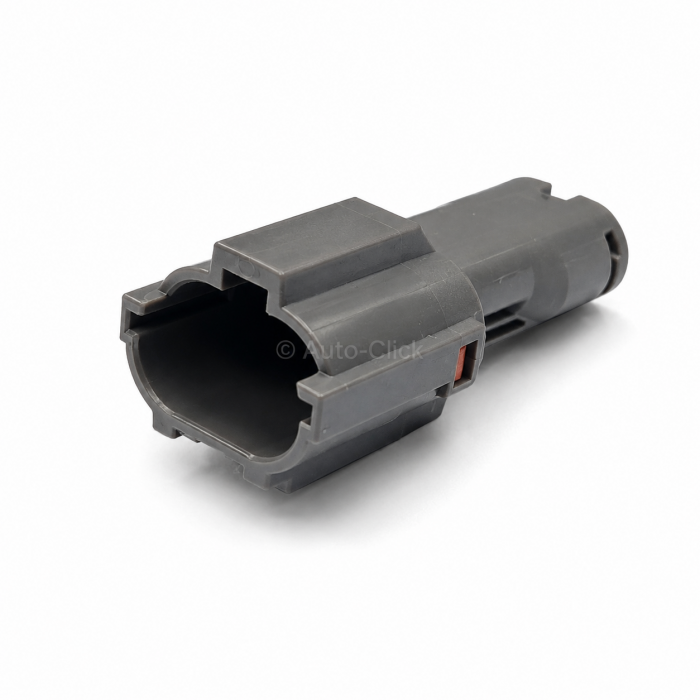

Yazaki 7222-1424-40 2-Way Male SWP Series Connector Housing

The Component: Genuine Yazaki SWP Series 2-position male connector housing / Premium 1.8mm tab system waterproof automotive plug / Single-row 1x2 inline cavity layout / Integrated exterior mounting clip slide rails / Internal secondary terminal locking retainer / Molded from heat-stabilized PBT resin / Component Part Number: 7222-1424-40 / Alternate OEM Identifiers: 7222142440 / 7222-1424 / SWP Series 2-Way Male.

Applications & Fitment: High-reliability waterproof male electrical connector housing engineered for severe under-bonnet and chassis locations across Japanese OEM vehicle platforms (Toyota, Lexus, Nissan, Honda). Widely specified for fog lamp connections, horn harnesses, side marker lights, wheel speed sensors, and inline chassis wiring connections requiring 1.8mm SWP series male tab terminals and individual wire seals. Features a secondary terminal lock mechanism to prevent terminal back-out under heavy engine vibration and thermal cycling (-40 to 120 degrees Celsius). Essential stock for auto-electrical repair specialists, harness builders, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 7222-1424-40 / 7222142440 (Manufacturer: Yazaki Corporation)

- Product Component Classification: SWP Series Male Connector Housing

- Connector Family Series: Yazaki SWP (Sealed Waterproof) Series

- Total Position Count: 1x2 Single-Row (2-Way / 2-Pin Male Plug)

- Cavity Layout Matrix: 1 Row x 2 Columns Inline Configuration

- Terminal System Compatibility: Accepts Yazaki 1.8mm SWP Series Male Tab Crimp Terminals (e.g., 7114-1470 series)

- Locking System Integrity: External Push Latching Notch with Internal Secondary Terminal Retainer

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (Requires compatible wire seals)

- Structural Material Base: Premium Heat-Stabilized Polybutylene Terephthalate (PBT)

- Color Profile: Factory Dark Grey / Charcoal Body

- Operating Temperature Limit: -40 to 120 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way male housing assembly. Male crimp tab terminals, individual wire seals, and mating female connector housing assemblies (e.g., Yazaki 7223-1424-40) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
