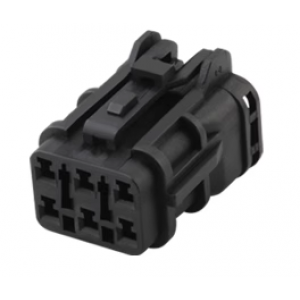

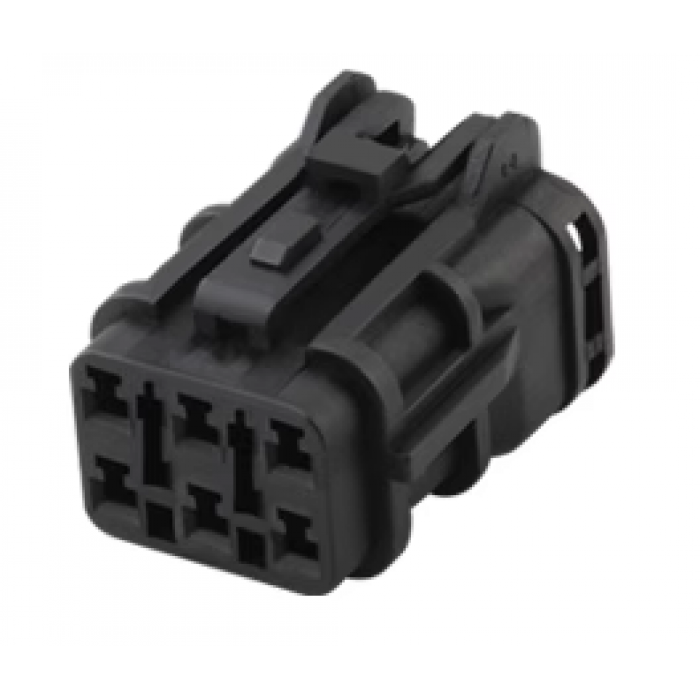

Yazaki 7123-7464-30 6-Way SWP Sealed Female Connector

The Component: Genuine Yazaki 7123-7464-30 6-way sealed female terminal housing block. SWP Series 1.8mm contact classification / High-grade impact-resistant PBT / Integrated TPA (Terminal Position Assurance) lock / Jet Black.

Applications & Fitment: Purpose-built as a robust, watertight wire-to-wire or wire-to-device electrical distribution hub. This 6-position female receptacle configuration is a cornerstone component in modern automotive wiring harnesses, serving as the factory-standard link for multi-function headlight assemblies, rear tail lamp grids, and electronic control unit (ECU) sub-paths.

Featuring an internal front-loading terminal lock structure, it stops contact back-out even under severe engine bay vibrations or continuous road shock. Important notice for assembly lines: Environmental sealing integrity is achieved via a dedicated individual wire seal (SWS) system on every populated terminal path, alongside standard rubber perimeter seals. Any unused paths must be blanked off with dummy plugs to preserve its IP-rated moisture barrier.

Technical Attributes:

- Manufacturer Part Number: 7123-7464-30 (Auto-Click SKU: 6-AC074 / Brand: Yazaki / Original OEM Quality)

- Product Family Ecosystem: SWP Connector Waterproof Series

- Component Typology: Female Receptacle Terminal Plug Housing

- Mating System Blade Width: Accepts 1.80mm (.070 inch) series terminal contacts

- Material Compound: PBT / Polybutylene Terephthalate for excellent chemical and thermal resistance

- Component Color Coding: Jet Black (Note: Often mates with Gray or Dark Gray male housings)

- Number of Positions / Rows: 6 Positions / 2 Rows (3x2 matrix configuration)

- Electrical Performance: Allowable reference current of up to 9.0 Amps; Insulation resistance of 100 Megohm Minimum at 500VDC

- Low-Voltage Circuit Resistance: 3 milli-ohm Maximum (Initial)

- Environmental Protection Rating: Sealed Waterproof System (Individual cable-track sealing concept)

- Operating Temperature Performance: High-endurance threshold rated from -40°C up to +120°C

- Associated Companion Parts: Mates directly with the matching 6-way male housing (Yazaki Part Number: 7222-7464-40). Accepts SWP 1.8 series female terminals (e.g., 7116-1471 / 7116-1472) and corresponding wire cavity seals.
