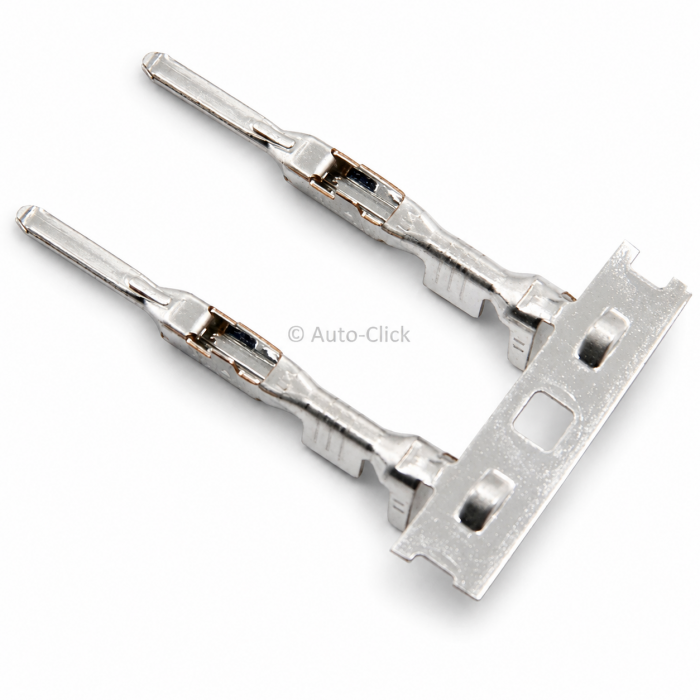

Yazaki 7114-4103-02 YES 1.5mm (.060) Male Terminal

The Component: Genuine Yazaki 7114-4103-02 male automotive sealed crimp terminal contact. YES / YESC Kaizen 1.5mm (.060) Series tin-plated copper alloy flat male tab pin contact (Reel Form / Loose Piece Cross-Ref: 7114-4103-02 / Alternative Manufacturer Alias: Sealed 1508 Sub-Group).

Applications & Fitment: Engineered as a high-reliability factory original equipment (OE) male tab pin interface for harsh-environment, low-voltage automotive sensor connections, cabin comfort electronics, and under-hood power routing networks. Universally specified across global Japanese and international passenger car platforms to populate sealed multi-position Yazaki 1.5mm (.060) series receptacle connector housings. Highly vulnerable to tab pin alignment bending if mated blindly against skewed female counterparts, or contact barrel fracture if terminated using non-profiled generic workshop hand crimping tools during field harness repair operations.

Technical Attributes:

- Manufacturer Part Number: 7114-4103-02 (Brand: Yazaki Connectors / Japan Genuine Class)

- Product Series Taxonomy: YES / YESC Kaizen Connector Family (1.5x0.8 Type Grid) / Sealed 1508 Series

- Component Function: Male Blade Contact / Flat Tab Pin Terminal

- Terminal Tab Sizing Footprint: 1.50mm (.060 inch) nominal blade width layout with a 0.80mm tab thickness profile

- Physical Component Dimensions: Overall structural lengths measuring 26.80mm (Length) x 2.60mm (Width) x 2.50mm (Height)

- Material Base Compound: High-Conductivity Premium Copper Alloy

- Surface Plating Treatment: Pure Tin (Sn) plating across entire contact interface and wire crimp barrels

- Target Wire Gauge Section (Metric): Optimized for 0.85mm² to 1.25mm² automotive primary electrical cabling runs (Accepts standard AVS and CAVS wire classes smoothly)

- Target Wire Gauge Section (AWG): Tailored to fit standard 18 AWG to 16 AWG thin-wall vehicle wiring configurations

- Circuit Performance Thresholds: Medium electric current classification supporting a reference allowable capacity ceiling of up to 15A Continuous (Ref) depending on individual housing configurations

- Low-Voltage Channel Resistance: Capped strictly at a 10.0mΩ Maximum initial contact path path restriction

- Insulation Isolation Rating: 20MΩ Minimum isolation grid efficiency measured at 500V DC; withstands 1000V AC dielectric potential across 1 minute

- Operational Thermal Window: Continuous operating thermal stability rated from -40°C up to +100°C

- Associated Rubber Wire Seals (Not Included): Seats perfectly within housing cavities utilizing matching Yazaki individual wire seals, including 7158-3004-40 or 7158-3031-90 depending on primary wire insulation outer diameter

- Mating Counterpart Contact: Pairs seamlessly as the direct flat tab partner to Yazaki YES 1.5 series female box socket crimp terminal 7116-4103-02
