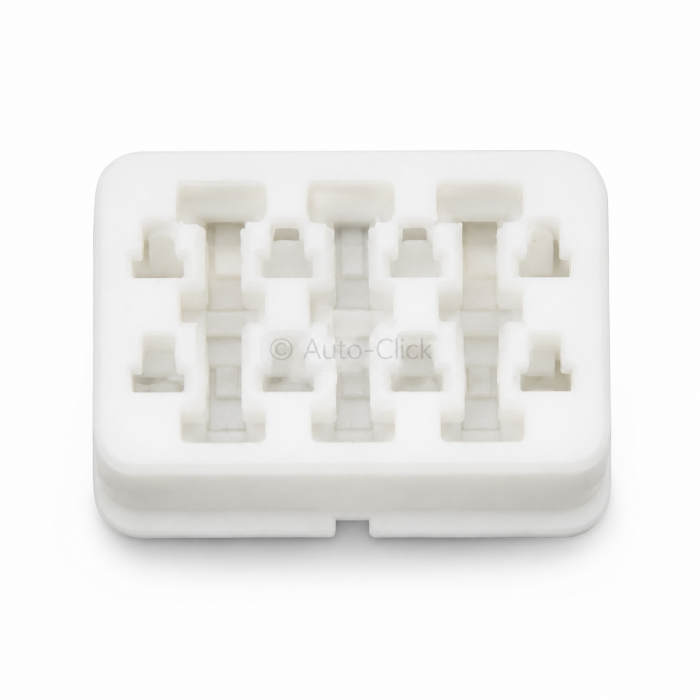

Sumitomo 6918-0332 8-Way Front Lock TPA Retainer Clip | White

The Component: Genuine Sumitomo 6918-0332 automotive connector front-loading secondary terminal lock retainer plate. HW Sealed Series family accessory / 8-position dual-row alignment bar grid classification / Terminal Position Assurance (TPA) system component (Natural White / High-Grade PBT / 2x4 Matrix Layout / Core Structural Component Alias: 69180332 / Global Order Reference: 6918-0332).

Applications & Fitment: Engineered as a critical safety and security mechanism designed to guarantee flawless electrical pathway integration across high-vibration automotive looms. This 8-way front retainer clip functions as the specialized structural insert for the Sumitomo 8-position HW series female housing system. It is inserted cleanly into the front mating face of the connector housing only after all wire terminal leads have been clicked into position. Once pressed home, the TPA detects un-seated contacts by physically blocking assembly closure if any single terminal is misaligned or backed out. Once locked, it mechanically locks over the primary lance blocks to double the structural pull-out threshold of the wire harness under intense chassis vibration. Essential for under-hood applications exposed to continuous powertrain buffeting, such as headlight distribution sub-harnesses, ignition modules, and multi-point sensor networks. Highly vulnerable to mechanical snapping, structural shear, or alignment prong warping if field service technicians roughly force extraction using un-profiled metal screwdrivers instead of smooth, low-taper secondary lock removal hooks.

Technical Attributes:

- Manufacturer Part Number: 6918-0332 / 69180332 (Brand: Sumitomo Wiring Systems / Genuine Factory Automotive Class)

- Product Series Taxonomy: HW Sealed Series Accessory Interconnect System Family

- Component Typology: Terminal Position Assurance (TPA) Front Lock Retainer Plate Clip

- Configuration Matrix: 8-Position / 8-Way Contact Windows, Dual-Row 2x4 Layout Profile

- Structural Locking Method: Front-loading slide engagement that anchors firmly into internal latch steps inside the main plug shell

- Base Structural Compound: Premium Polybutylene Terephthalate (PBT) high-impact, rigid, heat-stabilized engineering polymer

- Color Profile: Factory Natural Solid White (Provides sharp contrast against dark gray connector bodies for fast visual quality assurance checks)

- Operational Thermal Window: Heavy-duty engine bay certified to preserve elastic flexibility and dimensional stability from -40°C up to +120°C

- Target Housing Companionship: Custom engineered specifically to lock the 8-way Sumitomo HW sealed female housing block, part number 6189-0134

- Associated Terminal Contact Fitment: Secures standard 2.3mm (090 size) HW series female receptacle crimp sockets, including part numbers 1500-0106 and 1500-0110

- Commercial Access: Available as loose standalone commercial replacement pieces, or packed directly inside complete multi-piece trade housing repair kits. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
