64334-0300
£5.70
10 or more £5.00
100 or more £4.60
100 or more £4.60

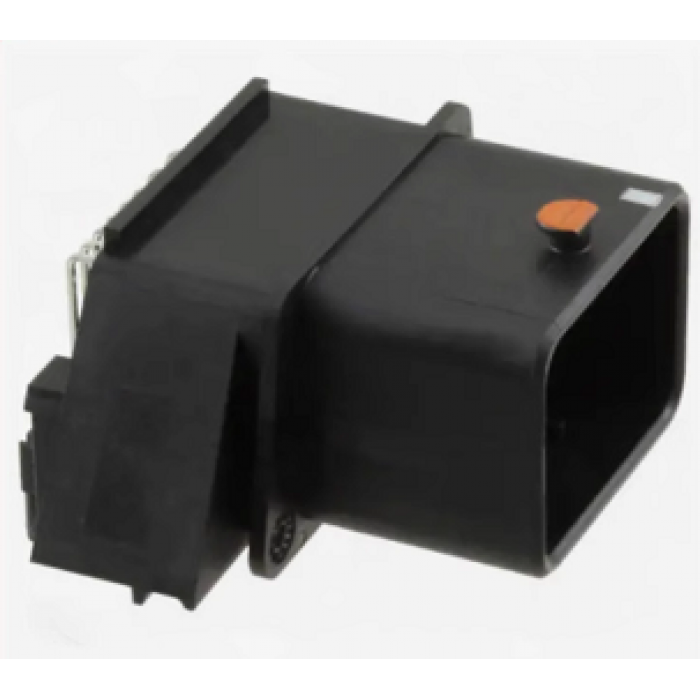

Molex 64334-0300 2.50mm, 3.70mm CMC Header, Right-Angle, 32 Circuits, 1 Port, Brown
| Status | Active | Category | PCB Headers and Receptacles |
|---|---|---|---|
| Series | 64334 | Description | 2.50mm, 3.70mm CMC Header, Right-Angle, 32 Circuits, 1 Port, Brown |
| Application | Automotive, Power, Wire-to-Board | Comments | Coding: Brown |
| Component Type | PCB Header | Product Family | CMC and CMX Sealed, Hybrid, Modular Connectors |
| Product Name | CMC | UPC | 883906844448 |
Electrical
| Current - Maximum per Contact | 12.0A, 2.5A | Voltage - Maximum | 14V DC |
|---|
Physical
| Breakaway | No | Circuits Detail | 8 x 1.5mm & 24 x 0.635mm terminals |
|---|---|---|---|
| Circuits (Loaded) | 32 | Circuits (maximum) | 32 |
| Color - Resin | Black | Durability (mating cycles max) | 20 |
| First Mate / Last Break | No | Glow-Wire Capable | No |
| Guide to Mating Part | Yes | Keying to Mating Part | Yes |
| Lock to Mating Part | Yes | Material - Plating Mating | Tin |
| Material - Resin | Nylon Alloy | Net Weight | 29.700/g |
| Number of Rows | 4 | Orientation | Right Angle |
| Packaging Type | Tray | Pitch - Mating Interface | 2.50mm, 3.70mm |
| Polarized to Mating Part | Yes | Polarized to PCB | Yes |
| Temperature Range - Operating | -40° to +105°C | Termination Interface Style | Solder or Weld |
Solder Process Data
| Max-Duration | 20 | Lead-Free Process Capability | WAVE |
|---|---|---|---|
| Max-Cycle | 1 | Max-Temp | 260 |
