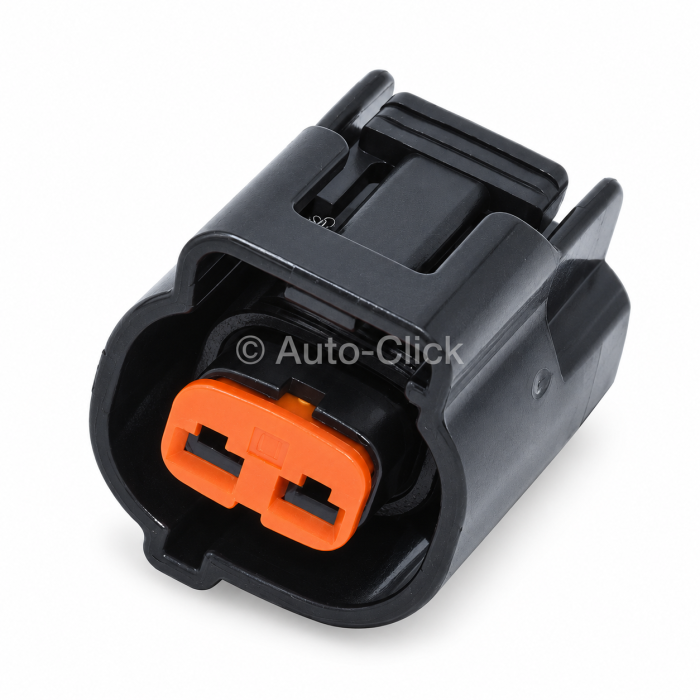

Sumitomo 6195-0062 DL 090 2-Way Female Sealed Connector Housing

The Component: Genuine Sumitomo OEM 2-position female socket connector housing / DL 090 Sealed Series 2.3mm (090 class) waterproof automotive device connector socket / Integrated rubber wire seal retention housing with positive primary locking latch mechanism / Molded from high-grade Polybutylene Terephthalate (PBT) resin / Component Part Number: 6195-0062 / Alternate Identifiers: Sumitomo 6195-0062 / 61950062 / DL090-2S-4 / DL 090 2-Way Female Sealed Black / 2.3mm 2-Pin Female Housing / Yamaha WR450F Fuel Pump Connector / Sumitomo DL 2-Way Device Connector 6195-0062.

Applications & Fitment: High-reliability waterproof female electrical socket connector housing engineered for direct-device connections, sensor harnesses, fuel pumps, speed sensors, and engine compartment sub-assemblies across Japanese OEM platforms (including Toyota, Nissan, Honda, Yamaha, and Kawasaki). Designed specifically to accept two 2.3mm (090 series) female socket terminals (e.g., Sumitomo 8100-1427 or 8100-1428) along with corresponding DL 090 silicone single wire seals. Commonly used as a direct device plug (e.g., fuel pump modules, auxiliary switches, ignition trigger components, solenoids) or mated to compatible 2-way male inline plugs (such as TS/DL 090 series male housings e.g., TS090-2P-1 / 6195-0006). Engineered to resist water ingress, engine oils, fuels, and harsh environmental contaminants under bonnet or exposed chassis conditions (-40 to 125 degrees Celsius). Essential stock for motorsport harness builders, motorcycle repair specialists, auto-electricians, and trade distributors.

Technical Attributes:

- OEM Part Number: 6195-0062 / 61950062 (Manufacturer: Sumitomo Wiring Systems)

- Product Component Classification: 2.3mm (090 Class) Female Socket Terminal Connector Housing Device

- Connector Family Series: Sumitomo DL 090 Sealed Series

- Application Profile: Device Interface & Cable-to-Cable Waterproof Inline Connections

- Connection Type: Wire-to-Device / Wire-to-Wire Female Socket Housing

- Total Position Count: 2-Way / 2-Pin Female Plug (2 Poles)

- Compatible Terminal Blade Width: 2.30 mm (.090 Series Class)

- Terminal System Compatibility: Accepts Sumitomo DL / HX / SL / TL / TS 090 series female socket crimp contacts (e.g., 8100-1427, 8100-1428, 8100-0461)

- Wire Seal System Compatibility: Accepts DL 090 silicone single wire seals (e.g., 7165-0118, 7165-0119, 7165-0120) or blind dummy plugs (7165-0130)

- Directly Mating Counterparts: Direct-fit sensor/pump device headers or Sumitomo 2-way 090 male housings (e.g., 6195-0006 / TS090-2P-1)

- Environmental Sealing Capability: Fully Sealed / Waterproof (IP67 Grade Environmental Resistance)

- Structural Material Base: Premium Polybutylene Terephthalate (PBT) Plastic

- Color Profile: Black Body Housing

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way female housing assembly. Female socket crimp terminals, silicone wire seals, and dummy plugs sold separately as individual piece parts or as part of a complete repair kit depending on stock configuration. Multi-tier trade volume discounts apply automatically at checkout.
