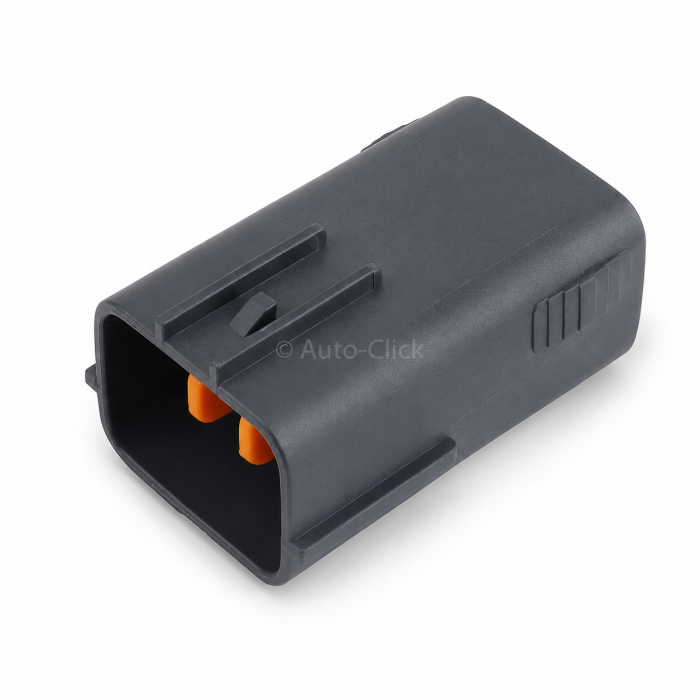

Sumitomo 6195-0024 6-Way Male DL Sealed Series Connector

The Component: Genuine Sumitomo DL Sealed Series 6-way male plug connector housing. Features a high-density 6-position dual-row matrix (2x3 layout configuration) / 2.3mm (090) terminal system spacing / Integrated internal high-visibility Orange terminal alignment and retention plate / Premium heat-stabilized Dark Gray Polyamide (Nylon) protective outer shell / Weatherproof free-hanging inline wire-to-wire male connector / Component Part Number: 6195-0024 / Sumitomo Order Reference: 61950024.

Applications & Fitment: Engineered to establish a heavy-duty, environmentally secure multi-circuit connection within automotive electrical architectures subjected to persistent moisture, road debris, and severe engine vibrations. This authentic 6-pin Sumitomo male plug housing serves as a core OEM wiring harness standard across leading Japanese passenger car and motorcycle lines, featuring prominently throughout factory Toyota, Honda, Nissan, and Mazda vehicle wiring assemblies. It is highly specified for high-criticality applications, including accelerator pedal position sensors (APPS), electronic throttle bodies, localized steering sub-assemblies, rear lighting clusters, and primary engine bay sensor link harnesses. Molded from premium, impact-resistant Polyamide nylon resin, the structural plug body retains high dimensional integrity and latching elasticity under severe thermal fluctuations. The internal cavity layout features a factory-fitted orange alignment plate that guides matching terminals smoothly into position and provides enhanced resistance against pin backing. Full weatherproofing is achieved by using individual silicone wire seals (SWS) or blind cavity plugs in unused positions, sealing out driving rain, industrial pressure washing, and fine dust particles. An essential stock item for motorsport loom builders, professional automotive wiring harness manufacturing, and exact factory-spec diagnostic field repairs.

Technical Attributes:

- Manufacturer Part Number: 6195-0024 / 61950024 (Brand: Sumitomo Wiring Systems, Ltd.)

- Product Series Taxonomy: DL Sealed Series / 2.3mm (090) Interconnection System

- Total Position Count: 6-Way / 6-Position Male Plug Housing

- Cavity Layout Matrix: Dual-Row 2x3 Straight Matrix Configuration

- Contact System Size Compatibility: Form-fitted to house 2.3mm (090) series male tab/pin terminals (Blade width approx. 2.3mm)

- Structural Safety Architecture: Equipped with an internal bright Orange alignment guide plate for rigid contact positioning

- Connector Style: Plug Housing for Male Pins/Tabs (Free-Hanging Inline or Custom Bracket Interface)

- Ingress Protection Status: Weatherproof / Sealed (Requires individual single-wire seals to establish complete moisture block)

- Primary Fastening Architecture: Integrated top-mounted locking latch arm designed to snap rigidly onto the receiving ramp of the mating female housing

- Base Structural Compound: Premium Heat-Stabilized Polyamide (Nylon) Polymer

- Color Profile: Factory Standard Dark Gray housing casing with an Orange internal terminal layout plate

- Certified Operational Boundaries: Operating temperature range certified from -40°C minimum up to +120°C maximum

- Mating Counterpart Reference: Connects flawlessly with corresponding DL sealed series 6-way female receptacle housings matching the 2.3mm (090) spacing matrix (Common matching female counterpart reference: 6195-0021 or equivalent series matching groups)

- Commercial Access: Available as loose individual component bodies, complete field service repair kit packages (with terminal tabs and seals), or trade volume bulk allocations. Tiered B2B trade volume discounts apply instantly inside the cart for volume trade accounts and auto-electrical stockists.
