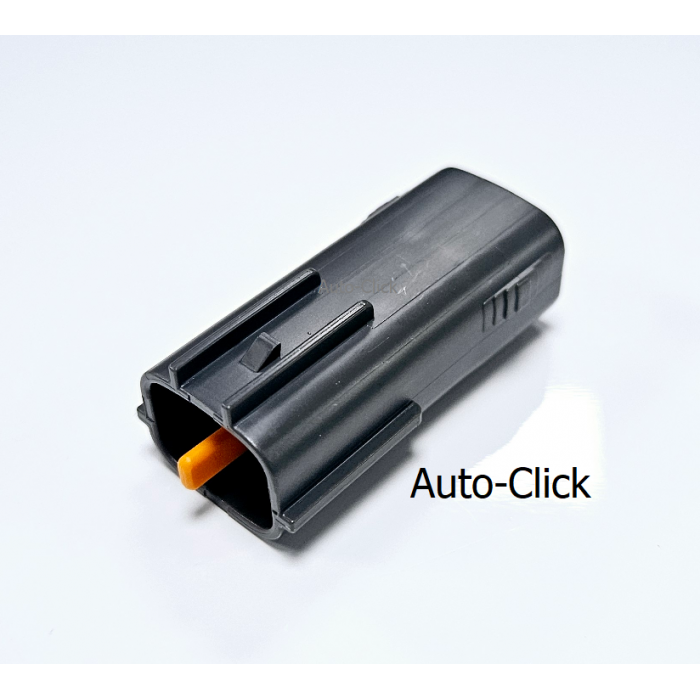

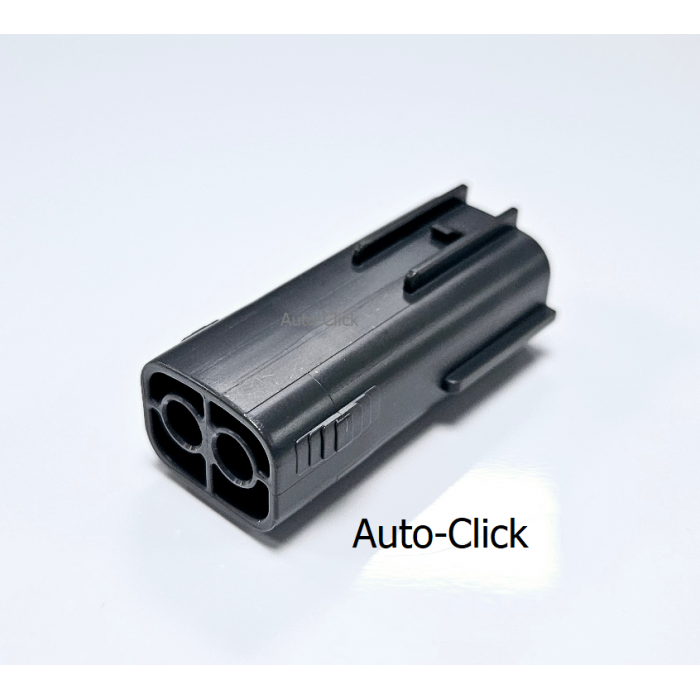

Sumitomo 6195-0006 DL Sealed Series 2-Way Male Connector

The Component: Genuine Sumitomo high-performance sealed male pin tab connector housing. DL 2.3mm (090) Heavy-Duty Sealed Series taxonomy / 2-position single-row male casing / Standard Keying Profile (Dark Gray Housing Shroud / Premium Heat-Stabilized PBT / Sealed Waterproof IP Rated / 1x2 Linear Layout / Male Exterior Fog Light, Wheel Arch Sensor, and License Plate Lamp Inline Plug / Component Variant Alias: 6195-0006 / Global Order Reference: 61950006).

Applications & Fitment: Engineered as a premium, heavy-duty original equipment (OE) specification wire-to-wire inline waterproof connection plug designed explicitly for harsh outdoor environmental routing, exterior auxiliary lighting feeds, and wheel-arch chassis sensory arrays. This 2-pin male blade housing block is an absolute wiring loom repair, aftermarket fog light retrofitting, and commercial vehicle fleet harness reconstruction staple across prominent international passenger and utility automotive platforms—most extensively integrated within Toyota, Lexus, Nissan, and Mazda factory wiring designs. It is standardly deployed across high-exposure external zones, serving as the direct inline harness-side male partner to the 6195-0003 female connector receptacle. It standardly supports high-exposure lower bumper elements, acting as the primary junction point for front fog lamp bulbs, ambient light pathways, horn arrays, and low-slung proximity sensory runs. It features a robust, streamlined exterior mating shroud with an integrated retention locking ramp designed to lock securely into the female connector's mechanical thumb clip latch, establishing a low-tolerance, positive engagement hold highly resilient to intense under-chassis road vibrations, high-velocity tire splash, engine bay oil misting, and winter road salt tracking. Engineered to conform to rigid tier-1 automotive manufacturing guidelines, its heavy-wall linear internal cavities feature an optimized spacing pitch designed to protect and shield 2.3mm (.090 inch) nominal series male pin terminals. When paired with independent silicone wire cavity seals and its matching female counterpart, it creates a fully weather-tight, IP-rated barrier against high-pressure washdown vapor, road grime tracking, and harsh exterior debris entry. Highly critical service item for auto-electrical workshops, professional collision repair centers, commercial body builders, and custom vehicle accessory installers overhauling shattered lower bumper matrices, corroded auxiliary leads, or sheared exterior chassis runs.

Technical Attributes:

- Manufacturer Part Number: 6195-0006 / 61950006 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: DL Sealed Series Interconnect Family

- Configuration: 2-Position / 2-Way Male Tab Housing, Single-Row 1x2 Linear Layout

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 2.3mm (090 series) nominal male pin tab blade terminals

- Connector Style: Male Tab Housing (Free-Hanging Inline Wire Loom Mating Interface)

- Fastening & Locking Architecture: Features a reinforced external locking shroud ramp to engage firmly with matching female mechanical thumb latches

- Environmental Sealing Level: High-performance waterproof, dustproof, and moisture-tight isolation utilizing a high-resiliency mating interface profile and individual single-wire rubber cavity seals (SWS)

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) / PA6T engineering polymer for maximum thermal track resistance, rigid dimensional memory, and robust mechanical impact toughness

- Color Profile: Factory Standard Dark Gray outer housing block assembly with integrated internal terminal alignment guides

- Circuit Rating Threshold: Form-fitted for standard low-voltage auxiliary lighting, power distribution runs, and chassis signaling loops operating standardly within DL 2.3mm current limits (up to 15 Amps max continuous)

- Wire Gauge Range Accommodation: Form-fitted for standard automotive low-voltage cross-sections from 0.50mm² up to 2.00mm² (approximately 20 AWG to 14 AWG thin-wall core lines depending on specific wire insulation OD)

- Target Male Terminal Contacts (Not Included): Precision optimized to accept genuine Sumitomo 2.3mm (090) series male crimp pins (including standard reference 8230-4472; requires individual cavity single-wire rubber seals to preserve full IP-rated waterproof isolation)

- Individual Wire Cavity Seals (Not Included): Compatible with genuine Sumitomo 7165 series elastomeric rubber wire seals depending on wire outer insulation diameter, including standard references 7165-0118 or 7165-0210

- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire looms as the direct male partner to matching 2-way female Sumitomo 2.3mm DL series interface housing 6195-0003

- Commercial Access: Available as loose individual housing shells, convenient trade repair field kits containing matched terminals/seals, or bulk trade master logistics runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
