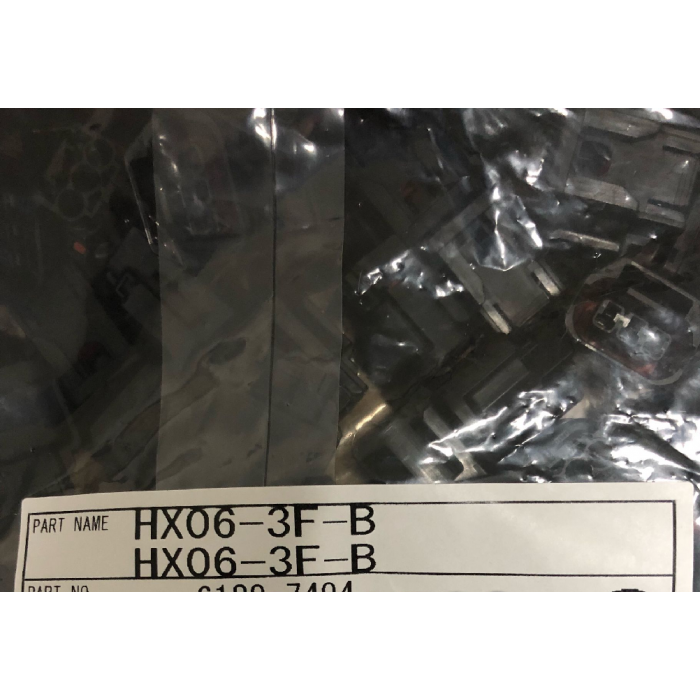

6189-7494

Terminals and seals are included

3 way automotive connector

HX sealed series

Housing Inline

1.5mm (060)

Sealed/Unsealed sealed

Male/Female F

Way 3

Materials PBT

Color Black

Contact resistance

Initial

3mΩ Max.

after durability tests

6mΩ Max.

Leak current 100μA Max.

Insulation resistance 100MΩ Min.

Seal

Initial

98kPa Min.

after durability tests

49kPa Min.
