6189-1161 / 90980-12416
Our part2-AC089 RoHS| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £3.60 | — |
| 10+ | £2.50 | |
| 100+ | £1.30 | |
| 1000+ | £0.75 |
Complete your connector
Matching terminals, seals and mating parts for this housing.
Terminals 2
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
Seals and plugs 2
Select by wire outside diameter. Plug any unused cavities.
Connectors and housings 1
Related housings in the same family or pin count.
Price isn't everything
This is a genuine SUMITOMO TS 0.64 part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
Product description
Includes terminals and seals

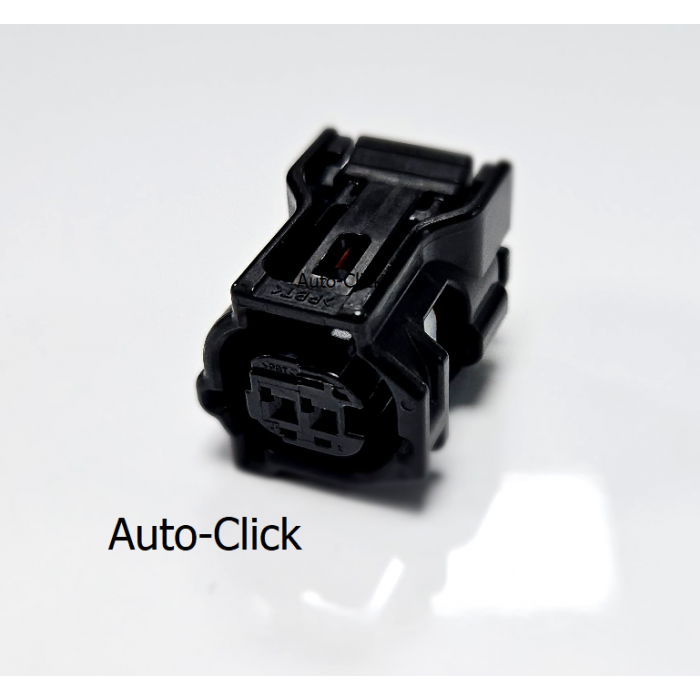

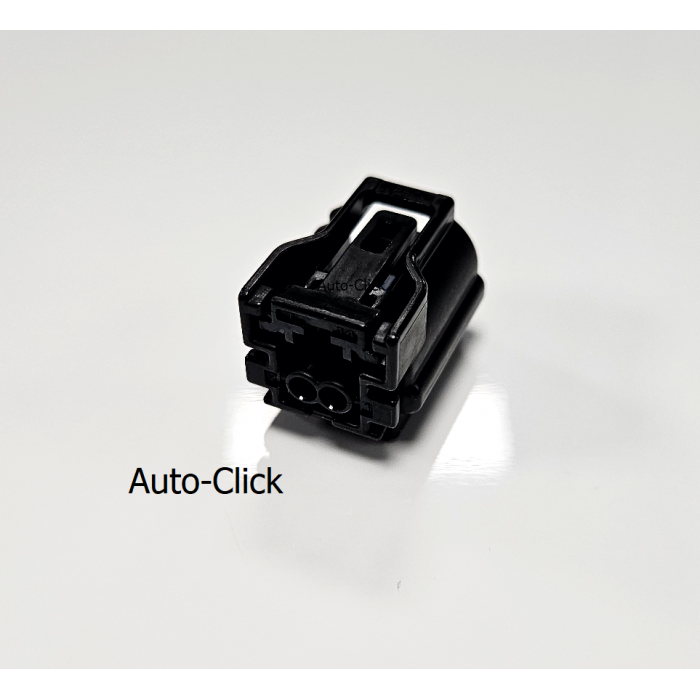

2 Way automotive connector
TS sealed series
Housing Inline
0.64mm (025)
Sealed/Unsealed sealed
Male/Female F
Way 2
Mating parts 6188-4797 (TS sealed series)
Materials PBT
Color Black
Contact resistance
Initial 8mΩ Max.
after durability tests 16mΩ Max.
Leak current 50μA Max.
Insulation resistance 100MΩ Min.
Seal
Initial 50kPa Min.
after durability tests 30kPa Min.
