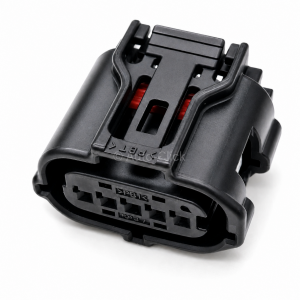

Sumitomo 6189-1046 TS 5-Way Female MAF Plug Toyota 90980-12292

The Component: Genuine Sumitomo 6189-1046 5-way female automotive sealed connector plug. TS Sealed Series 0.64mm (.025) 5-position receptacle socket casing (Black / PBT / Sealed / Inline Housing / Official Toyota Cross-Ref: 90980-12292).

Series Taxonomy: Sumitomo TS Sealed Series System. A globally recognized, ultra-compact Japanese automotive environmental interconnect platform engineered by Sumitomo Wiring Systems. Developed to handle highly sensitive low-voltage sensor signaling, preserve flawless data telemetry under severe under-hood engine harmonics, and establish total weatherproof insulation across micro-pitch engine components.

Connector Interface: 5-position (5-way) single-row female socket plug configuration layout featuring a micro-miniature 0.64mm (.025 size) terminal pin tracking matrix, explicitly designed to accept standard Sumitomo TS series female socket contacts with a dense 3.0mm terminal pitch center line.

Locking and Sealing Security: Environmentally sealed to an IP67 waterproof and dustproof automotive classification, engineered to operate continuously within an intensive under-hood thermal window certified from -40 to +125 degrees Celsius. Employs a robust pre-installed internal perimeter silicone compression face seal combined with matching rear individual single-wire rubber insulation cavity seals (SWS) to block out ambient moisture tracking, road splash, hot oil vapors, and glycol tracking completely. Equipped with a rugged external mechanical top thumb-latch locking frame coupled with an integrated secondary terminal lock to guarantee precise contact pin retention and entirely eliminate terminal back-out under severe harness tension.

Mating Complement: Designed for clean wire-to-device inline harness routing. Connects by clicking directly onto factory-installed male sensor component pins or its corresponding 5-way male inline tab partner plug housing variant under the Sumitomo TS footprint (6189-1046 Male Coupling counterpart variant).

Common Applications: Extensively specified as a factory original equipment (OE) mainstay across prominent Japanese passenger car networks and global tuner platforms, most notably throughout Toyota, Lexus, and Mazda vehicle generations. Universally recognized across the auto-electrical trade as the definitive replacement wiring harness repair pigtail for modern Mass Air Flow (MAF) sensor arrays. Most frequently deployed as the factory engine MAF sensor plug for Toyota Land Cruiser (3.0 D-4D, 4.5 V8 D-4D) platforms and Mazda 2.2 Skyactiv diesel powertrain architectures. Highly vulnerable to primary external mechanical thumb-latch snapping from age-related under-hood heat-soak embrittlement, side shroud fractures from rough pulling attempts during airbox filter overhauls, or delicate inner channel throat distortion if probed aggressively with uncalibrated workshop field diagnostic pins.

Sumitomo 6189-1046 TS Series 5-Way Sealed Female MAF Sensor & Toyota 90980-12292 Plug Housing

Clear persistent engine check lights, resolve intermittent mass air flow signaling dropouts, and reinstate maximum factory-standard environmental insulation at your powertrain sensor grid with the genuine Sumitomo 6189-1046 5-way female sealed connector plug housing. Precision-manufactured to strict Tier-1 original equipment global automotive engineering parameters by Sumitomo, this 5-pin TS series 0.64mm socket carrier block is an indispensable trade component for executing professional sensory loom restorations, custom motorsport wire tucks, and clean auto-electrical repair pigtail overhauls. Engineered explicitly to survive punishing dynamic forces directly on the engine intake tract and air filter boundary, it preserves a zero-clearance conduction channel that safely handles critical voltage sensing and logic data streams back to the ECU.

The 6189-1046 carrier housing is injection-molded from a premium, heat-stabilized Polybutylene Terephthalate compound (PBT) finished in a factory clean solid black shroud profile, ensuring outstanding structural impact defense, superior dimensional tracking stability under continuous chassis vibration, and complete structural immunity to chemical degradation from hot engine oils, fuel vapors, and environmental road salt spray. Working in absolute uniformity with its high-grade internal silicone perimeter radial face seal and compatible rear single-wire insulation rubber seals, it forms an impenetrable barrier that isolates the active terminal lanes. This authentic replacement component allows independent tuning garages, diagnostic auto-electricians, and Japanese car repair specialists to deliver reliable, zero-resistance factory harness overhauls.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 6189-1046 (Alternative SKU: 12292WQA5F-B / Brand: Sumitomo / Japan Genuine Class)

- Authentic Vehicle Fleet Cross-Reference: Toyota/Lexus Part Number: 90980-12292

- Auto-Click Core System Identifier: Our Part Number 5-AC052 (Verified Stock Allocation)

- Configuration: 5-Position / 5-Way Female Receptacle Housing, Single-Row Flat Layout

- Product Series Taxonomy: TS Sealed Series / 0.64mm (.025) Micro-Pitch Mating Class

- Mating Terminal Contact Width: 0.64mm Flat terminal footprint path

- Mating Center Line Pitch: 3.0mm layout spacing

- Number of Cavities/Positions: 5 Pins inline

- Environmental Rating: Waterproof / Dustproof High-Performance Environmental Shielding (IP67 Rated / Sealed with SWS)

- Electric Current Classification: SMALL / Rated up to 7A maximum continuous reference ceiling

- Base Structural Compound: Premium High-Temperature Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Black

- Low-Voltage Contact Resistance Window: Initial: 8 mΩ Maximum constraint limit | After Durability Testing: 16 mΩ Max

- Leakage Current Barrier Envelope: 50 µA Maximum tracking ceiling reference

- Insulation Resistance Capability: 100 MΩ Minimum threshold (at 500V DC)

- Hermetic Airtight Seal Integrity: Initial: 50 kPa Minimum pressure | After Durability Testing: 30 kPa Min

- Target Female Terminal Contacts (Not Included): Fits standard Sumitomo TS 0.64mm female socket contacts (e.g., 8100-3455, 8100-3456, 8240-0336, 8240-0337)

- Associated Rubber Wire Seals (Not Included): Fits TS 0.64 series single-wire rubber seals (e.g., 7165-1043, 7165-1312, 7165-0796, 7165-0891)

- Mating Counterpart Shroud: Pairs with factory MAF headers or 5-way male inline coupling housing variant

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, diagnostic service hubs, and trade auto-electrical stockists.5 Way Automotive Connector

TS sealed series

Housing Inline

0.64mm (025)

Sealed/Unsealed sealed

Male/Female F

Way 5

Materials PBT

Color Black

Contact resistance

Initial

8mΩ Max.

after durability tests

16mΩ Max.

Leak current 50μA Max.

Insulation resistance 100MΩ Min.

Seal

Initial

50kPa Min.

after durability tests

30kPa Min.
