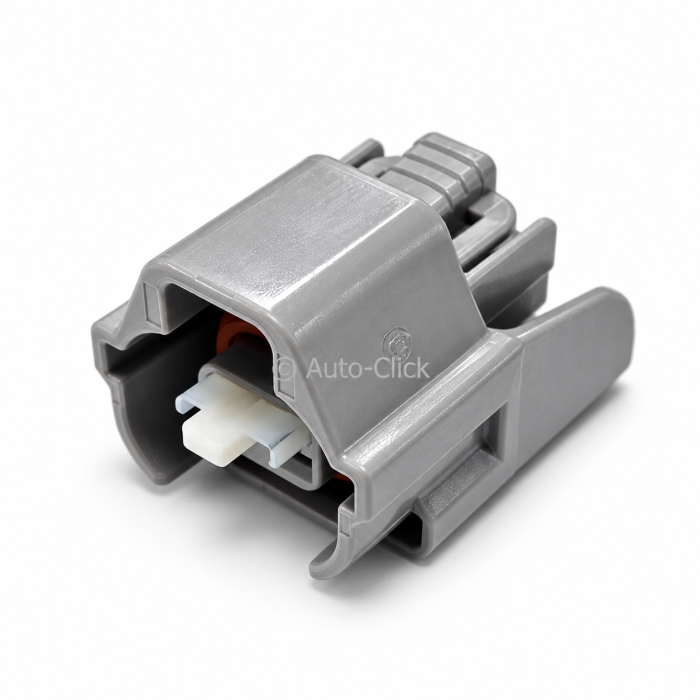

Sumitomo 6189-0573 TS 090 2-Way Female Sealed Connector Housing

The Component: Genuine Sumitomo OEM 2-position female socket connector housing / TS 090 Sealed Series 2.3mm (090 class) waterproof automotive inline connector socket / Integrated silicone wire seal retention housing with positive primary locking latch mechanism / Molded from premium Polybutylene Terephthalate (PBT) resin / Component Part Number: 6189-0573 / Alternate Identifiers: Sumitomo 6189-0573 / 61890573 / TS090-2S-1 / TS 090 2-Way Female Sealed Gray / 2.3mm 2-Pin Female Inline Housing / Sumitomo TS 2-Way Female Plug 6189-0573.

Applications & Fitment: High-reliability waterproof female electrical socket connector housing engineered for cable-to-cable inline wiring harnesses, sensor sub-assemblies, lighting looms, and engine management sub-systems across Japanese OEM platforms (including Toyota, Lexus, Nissan, Honda, Mazda, Suzuki, and Subaru). Designed specifically to accept two 2.3mm (090 series) female socket terminals (e.g., Sumitomo 8100-1427 or 8100-1428) along with corresponding TS 090 silicone single wire seals. Commonly specified for turn signals, fog light circuits, wheel speed sensors, horn connections, and under-bonnet sensor interfaces. Mates directly with the corresponding 2-way male inline pin connector housing (Sumitomo 6188-0361 / TS090-2P-1). Engineered to withstand severe engine compartment vibration, direct water spray, automotive fuels, and harsh environmental contaminants (-40 to 125 degrees Celsius). Essential stock for auto-electricians, motorsport harness builders, Japanese import specialists, and trade distributors.

Technical Attributes:

- OEM Part Number: 6189-0573 / 61890573 (Manufacturer: Sumitomo Wiring Systems)

- Product Component Classification: 2.3mm (090 Class) Female Socket Terminal Connector Housing

- Connector Family Series: Sumitomo TS 090 Sealed Series

- Application Profile: Wire-to-Wire Inline & Sensor Interface Waterproof Connections

- Connection Type: Wire-to-Wire Female Socket Housing Plug

- Total Position Count: 2-Way / 2-Pin Female Plug (2 Poles)

- Compatible Terminal Blade Width: 2.30 mm (.090 Series Class)

- Terminal System Compatibility: Accepts Sumitomo TS / HX / HM / DL 090 series female socket crimp contacts (e.g., 8100-1427, 8100-1428, 8100-0461)

- Wire Seal System Compatibility: Accepts TS 090 silicone single wire seals (e.g., 7165-0118, 7165-0119, 7165-0120) or blind cavity dummy plugs

- Directly Mating Counterparts: Sumitomo 6188-0361 (TS 090 2-Way Male Inline Connector Housing / Gray)

- Environmental Sealing Capability: Fully Sealed / Waterproof (IP67 Grade Environmental Protection via internal silicone gasket and wire seals)

- Structural Material Base: Premium Polybutylene Terephthalate (PBT) Plastic

- Color Profile: Gray Body Housing

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way female housing assembly. Female socket crimp terminals, silicone wire seals, and mating male housings sold separately as individual piece parts or as part of a complete repair kit depending on stock configuration. Multi-tier trade volume discounts apply automatically at checkout.
