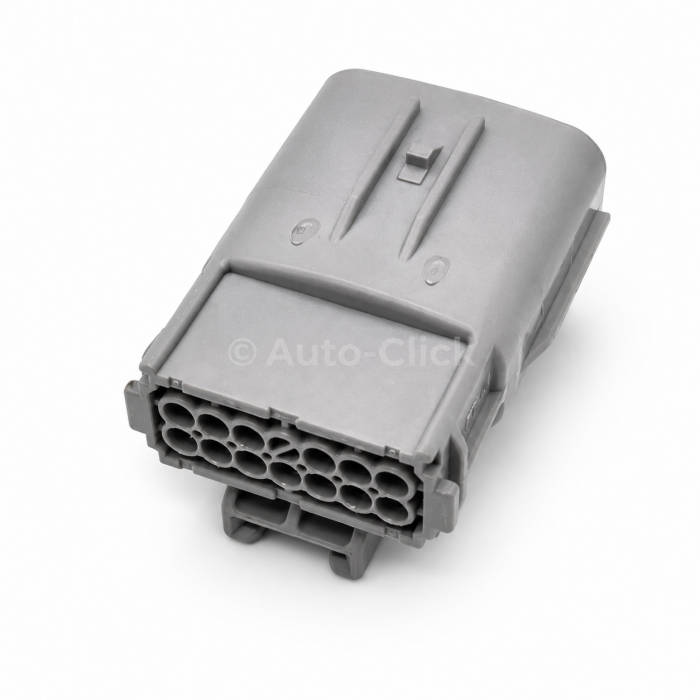

Sumitomo 6188-4914 (Toyota 90980-12716) 13-Way Male Sealed Connector

The Component: Genuine Sumitomo high-performance sealed male pin tab connector housing. TS 025 Ultra-Compact Sealed Series taxonomy / 13-position multi-row male casing / Standard Keying Profile (Industrial Gray Housing Shroud / Premium Heat-Stabilized PBT / Sealed Waterproof IP Rated / Multi-Row Hybrid Matrix Layout / Male Front Bumper Radar, Intelligent Sensory Loom, and Gearbox Valve Harness Inline Plug / Component Variant Alias: 6188-4914 / Global Order Reference: 61884914 / Automotive Toyota OEM Interconnect Cross-Reference: 90980-12716 / 9098012716).

Applications & Fitment: Engineered as a premium, ultra-compact original equipment (OE) specification wire-to-wire inline waterproof connection plug designed explicitly for complex multi-channel signal routing, front fascia radar arrays, automated driving assistance systems (ADAS), and harsh under-chassis gearbox valve body wiring loops. This 13-pin male micro blade housing block is an absolute wiring loom repair, forward collision assembly, and harness reconstruction staple across premium Japanese automotive platforms—most prominently integrated within Toyota, Lexus, and Subaru factory electrical architectures. It is standardly deployed across high-exposure external vehicle zones, serving as the direct inline harness-side male partner to the 6189-1092 female connector receptacle (commonly cross-referenced with Toyota factory engineering reference 90980-12716). It standardly supports advanced front ultrasonic radar networks, active cruise tracking sensors, and complex transmission control linkages. It features a streamlined exterior mating shroud with an integrated retention ramp designed to engage firmly with the female connector's mechanical thumb clip, establishing a low-tolerance, positive engagement hold highly resilient to intense under-chassis road vibrations, high-velocity wind exposure, engine bay fluid misting, and winter road salt tracking. Engineered to conform to rigid tier-1 automotive manufacturing guidelines, its compact multi-row internal cavities feature a tight layout pitch designed to protect and shield 0.64mm (.025 inch) micro series male pin terminals. When paired with independent silicone wire cavity seals and its matching female counterpart, it creates a fully weather-tight, IP-rated barrier against high-pressure washdown vapor, road grime tracking, and harsh engine oil vapor infiltration. Highly critical service item for auto-electrical workshops, professional diagnostic body shops, collision repair facilities, and vehicle styling retrofitters overhauling sheared front bumper matrices or corroded harness junctions.

Technical Attributes:

- Manufacturer Part Number: 6188-4914 / 61884914 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: TS 025 Sealed Micro Series Interconnect Family

- Configuration: 13-Position / 13-Way Male Tab Housing, Multi-Row Matrix Layout

- Toyota Factory Equivalent Part Number: 90980-12716 / 9098012716

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 0.64mm (.025 series) nominal micro male blade pins

- Connector Style: Male Tab Housing (Free-Hanging Inline Wire Loom Mating Interface)

- Fastening & Locking Architecture: Features a reinforced external locking ramp shroud to lock securely into matching female mechanical thumb latches

- Environmental Sealing Level: High-performance waterproof and dustproof isolation utilizing individual single-wire rubber cavity seals (SWS) and a compatible mating interface setup

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal track resistance, rigid dimensional memory, and robust structural impact toughness

- Color Profile: Factory Standard Industrial Gray outer housing block assembly with integrated terminal alignment slots

- Circuit Rating Threshold: Form-fitted for high-integrity low-voltage micro signaling, multi-core data links, and sensory loops operating standardly below 7 Amps max continuous threshold per lane

- Wire Gauge Range Accommodation: Form-fitted for standard automotive low-voltage cross-sections from 0.22mm² up to 0.50mm² (approximately 24 AWG to 20 AWG thin-wall core lines)

- Target Male Terminal Contacts (Not Included): Precision optimized to accept genuine Sumitomo 0.64mm (025) micro series male crimp pins (including standard references 8100-3617 and 8100-3708; requires individual cavity single-wire rubber seals to preserve full IP-rated waterproof isolation)

- Individual Wire Cavity Seals (Not Included): Compatible with genuine TS 025 series elastomeric seals depending on wire outer diameter, including 7165-1312 (Large/Green), 7165-0796 (Medium), or 7165-0891 (Small)

- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire looms as the direct male partner to matching 13-way female Sumitomo 0.64mm series interface housing 6189-1092

- Commercial Access: Available as loose individual housing shells, convenient trade repair field kits containing matched terminals/seals, or bulk trade master logistics runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
