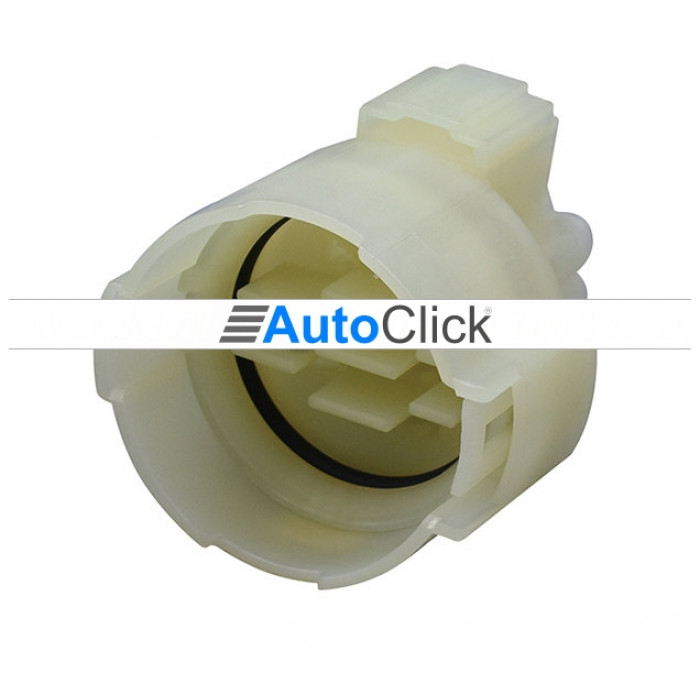

SUMITOMO 6188-4691

Terminals and seals are included

14 Way Automotive Connector

6188-4691

HM sealed series

Housing Inline

2.3mm (090)

Sealed/Unsealed sealed

Male/Female M

Way 14

Mating parts 6181-4451 (HM sealed series)

Materials 66 Nylon

Color Natural

Contact resistance

Initial

3mΩ Max.

after durability tests

10mΩ Max.

Leak current 100μA Max.

Insulation resistance 100MΩ Min.

Seal

Initial

49.0kPa Min.

after durability tests

29.4kPa Min.

Note B Type
