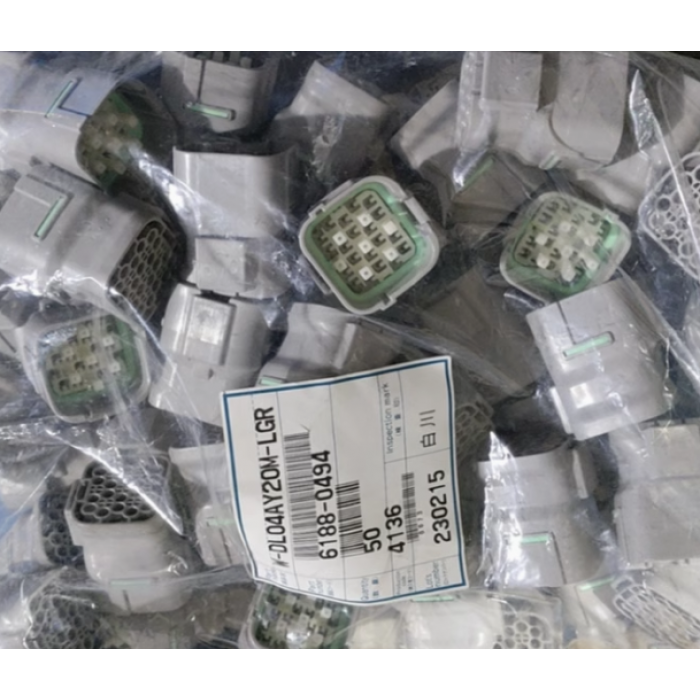

Original Sumitomo 6188-0494

Terminals and seals are not included

20 Way Automotive Connector

DL sealed series

Housing Inline Bracket fixation

1.0mm (040)

Sealed/Unsealed sealed

Male/Female M

Way 20

Mating parts 6189-0714 (DL sealed series)

Materials PBT

Color Gray

Contact resistance

Initial

3mΩ Max.

after durability tests

10mΩ Max.

Leak current 100μA Max.

Insulation resistance 100MΩ Min.

Seal

Initial

49.0kPa Min.

after durability tests

29.4kPa Min.

Clamp Bracket Clamp : TYPE1

Note A compact sealed connector with TPA (Terminal position assurance) mechanism.
