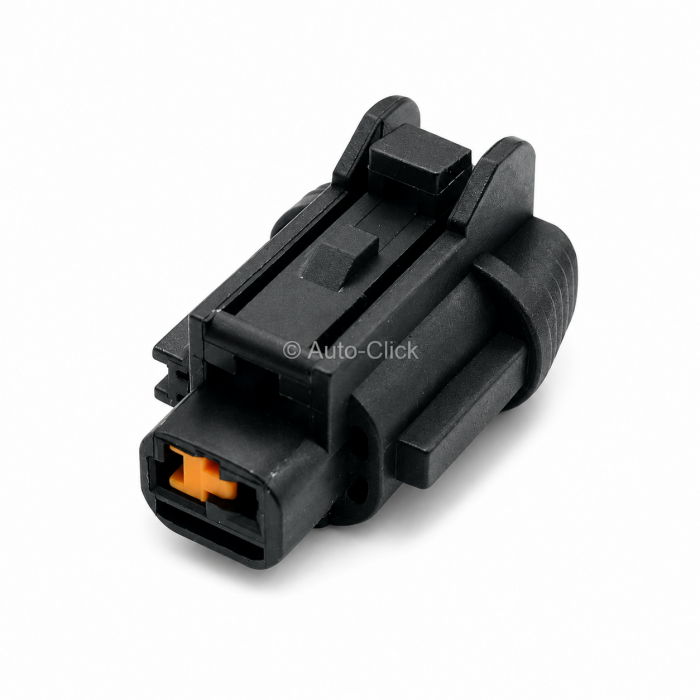

Sumitomo 6185-0862 1-Way Female RS Sealed Connector

The Component: Genuine Sumitomo high-performance sealed female receptacle connector plug housing. RS Sealed Series taxonomy / 1-position single-cavity female casing / Standard Keying Profile (Dark Gray / Premium Heat-Stabilized PBT / Sealed Waterproof / 1-Way Inline Harness Plug / Component Variant Alias: 6185-0862 / Global Order Reference: 61850862).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) wire-to-wire or wire-to-device waterproof connection plug designed explicitly for low-pole, high-vibration automotive powertrain environments and chassis systems. This 1-pin female plug block is an absolute wiring loom staple across modern Japanese passenger cars, heavy fleet commercial platforms, and powersports networks—prominently integrated within Toyota, Lexus, Honda, Nissan, and Mitsubishi factory wiring architectures. It is standardly deployed across critical single-circuit automotive lines including oil pressure switches, coolant temperature senders, single-tone horn modules, and select air conditioning compressor clutch triggers. It features an integrated top-mounted mechanical thumb locking latch that clicks firmly over the mating male shroud's retention ramp, ensuring a low-tolerance, positive lock that eliminates terminal back-out under severe engine block thermal cycles and multi-axis vibrations. Engineered to meet strict tier-1 factory validation guidelines, its internal single-cavity profile pairs with high-elasticity wire seals to form an absolute barrier against high-pressure moisture ingress, road spray washdowns, salt crusting, and under-hood oil vapors. Highly vulnerable to thumb latch fracturing if field technicians apply rough leverage with un-profiled workshop screwdrivers instead of smoothly depressing the central release lever.

Technical Attributes:

- Manufacturer Part Number: 6185-0862 / 61850862 (Brand: Sumitomo Wiring Systems / Japan Genuine Class)

- Product Series Taxonomy: RS Sealed Series Interconnect Family

- Configuration: 1-Position / 1-Way Female Receptacle Plug, Single-Cavity Inline Layout

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 2.3mm nominal blade width RS series female socket terminals (090 classification)

- Connector Style: Receptacle Housing for Female Contacts (Free-Hanging Wire Loom or Direct Module Interface)

- Fastening & Locking Architecture: Features an integrated positive locking top-mounted thumb latch clip mechanism

- Environmental Sealing Level: High-performance waterproof and dustproof isolation utilizing a pre-installed inner rubber perimeter interface ring matrix and individual single-wire cavity seals

- Physical Footprint Dimensions: 26.25mm Overall Length x 18.70mm Base Housing Width x 16.20mm Overall Height profile

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal tracking resistance, rigid dimensional memory, and chemical toughness

- Color Profile: Factory Standard Dark Gray housing assembly block

- Circuit Rating Threshold: Form-fitted for standard low-voltage signaling and medium-power power distribution networks operating below 32V DC continuous

- Operational Thermal Window: Severe-duty engine block and chassis layout certified to maintain material elasticity and seal compliance from -40°C up to +120°C

- Target Female Terminal Contacts (Not Included): Precision optimized to accept genuine Sumitomo RS 2.3mm (.090) series female crimp sockets (such as part numbers 8240-0263, 8240-0264, and 8240-0266; requires individual cavity single-wire rubber seals to preserve full IP-rated waterproof isolation)

- Mating Counterpart Interface: Pairs seamlessly inline or to device headers as the direct female partner to matching 1-way male Sumitomo RS sealed series connector part number 6188-0551

- Commercial Access: Available as loose individual housing shells or complete trade repair connection kits containing matched terminals and wire seals. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
