6098-5289
Auto Click™ part32-AC002 RoHS
Genuine SUMITOMO OEM · fully traceable
Auto Click™ price
909 in stock
£0.95
each
Single unit pricing applies. Use the volume quotation form for bulk orders.
Ordering 1,000+? Request an Auto Click™ volume quote
Sold & dispatched by Auto Click™
Free UK delivery over £30
Worldwide shipping daily
30-day returns
Associated parts
Terminals, seals and mating parts for this housing. Order any quantity, or request a volume quote for 1,000+.
Terminals 2
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
Price isn't everything
This is a genuine SUMITOMO part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
Product description
Terminals are NOT included

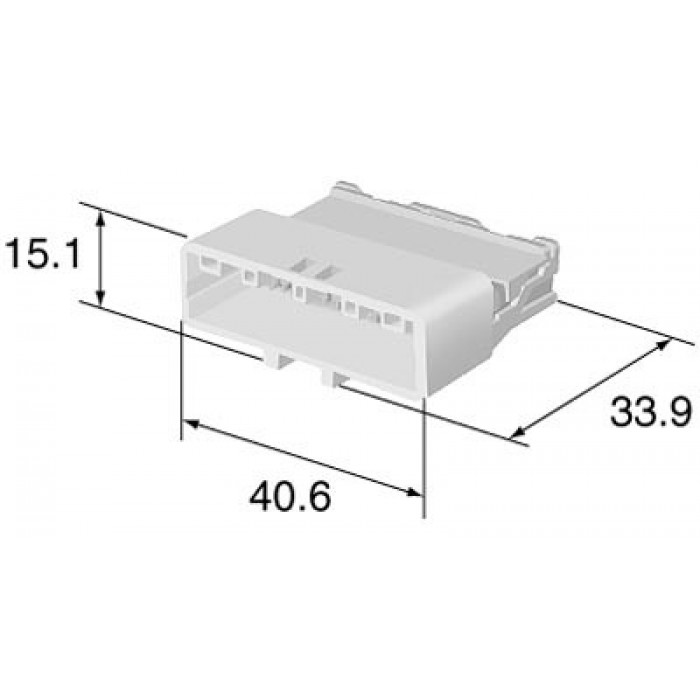

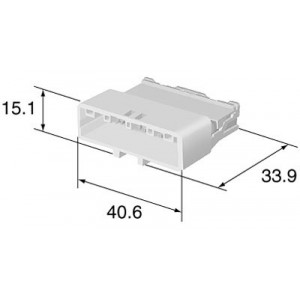

32 Way Automotive Connector
NH series
Housing Inline
0.64mm (025)
Sealed/Unsealed unsealed
Male/Female M
Way 32
Mating parts 6098-5287 (NH series)
Materials PBT
Color Natural
Contact resistance
Initial
10mΩ Max.
after durability tests
30mΩ Max.
Leak current 1mA Max.
Insulation resistance 100MΩ Min.
