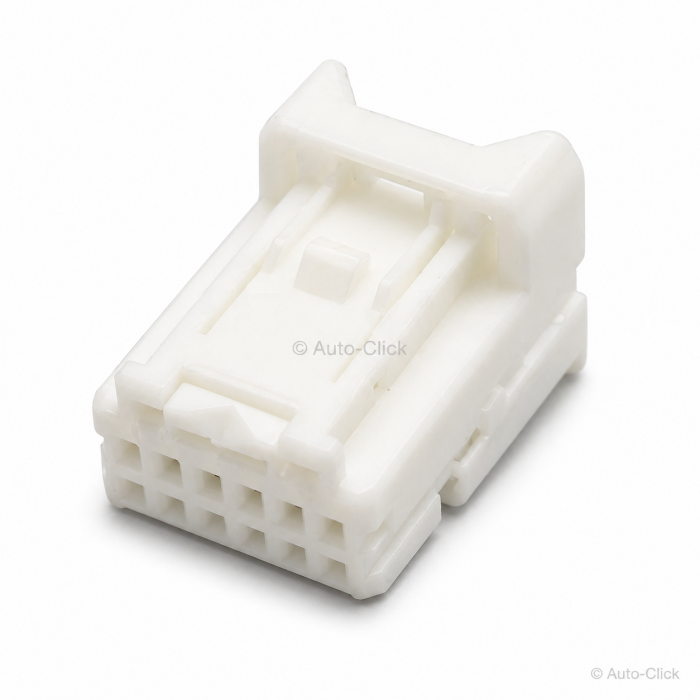

Sumitomo 6098-5275 NH Series 12-Way Female Connector Housing

The Component: Genuine Sumitomo OEM 12-position female socket housing / NH Series 0.64mm (025) high-density automotive connector plug / Compact 2x6 dual-row inline cavity layout / Top primary locking latch with hinged secondary terminal locking retainer / Molded from high-grade, heat-resistant Polybutylene Terephthalate (PBT) resin / Component Part Number: 6098-5275 / Alternate OEM Identifiers: Sumitomo 6098-5275 / 60985275 / NH 12-Pin Female Plug / 0.64mm 12-Way Female Housing / 025 Series 12-Pin Connector Natural / Unsealed 12-Way Cabin Connector.

Applications & Fitment: High-density unsealed female electrical connector housing engineered for interior cabin, dashboard, and body electronic sub-harnesses across Toyota, Lexus, Honda, Nissan, Mazda, Subaru, and Japanese OEM vehicle platforms. Designed specifically to hold twelve 0.64mm (025 series) female socket crimp contacts on a 2x6 grid layout. Mates directly with male inline connector housing Sumitomo 6098-5277. Widely specified for steering wheel control wiring, instrument cluster sub-harnesses, body control module (BCM) interfaces, HVAC control panels, and interior door harness interconnects. Engineered to deliver secure terminal retention and resistance to cabin vibration and thermal fluctuation (-40 to 105 degrees Celsius). Essential stock for auto-electricians, Japanese vehicle specialists, harness repair technicians, and trade distributors.

Technical Attributes:

- OEM Part Number: 6098-5275 / 60985275 (Manufacturer: Sumitomo Wiring Systems)

- Product Component Classification: 0.64mm (025 Series) Female Socket Connector Housing Device

- Connector Family Series: Sumitomo NH Series (0.64mm / 025 System)

- Application Profile: Housing Inline Cable-to-Cable / Cable-to-Board Connections

- Connection Type: Wire-to-Wire / Wire-to-Device Inline Female Receptacle

- Total Position Count: 12-Way / 12-Pin Female Plug

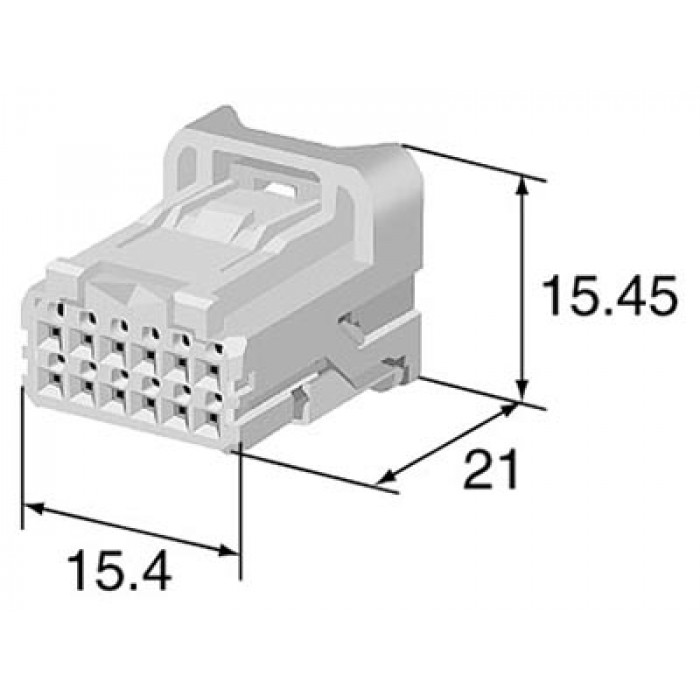

- Cavity Layout Matrix: 2 Rows x 6 Columns Inline Configuration Profile

- Compatible Terminal Blade Width: 0.64 mm (025 Class) Female Socket Contacts

- Terminal System Compatibility: Accepts Sumitomo NH / 025 series female socket crimp terminals (e.g., 8100-3624 / 8100-1471 series)

- Directly Mating Part Number: Sumitomo 6098-5277 (NH Series 12-Way Male Housing - Natural)

- Ingress Protection Status: Unsealed (Interior / Cabin Application Profile)

- Structural Material Base: Premium Grade Polybutylene Terephthalate (PBT)

- Color Profile: Factory Natural (White / Off-White) Body

- Operating Temperature Limit: -40 to 105 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 12-way female housing assembly. Female socket crimp terminals and mating male connector housing (6098-5277) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
