211PC063S0003

Terminals and seals are included

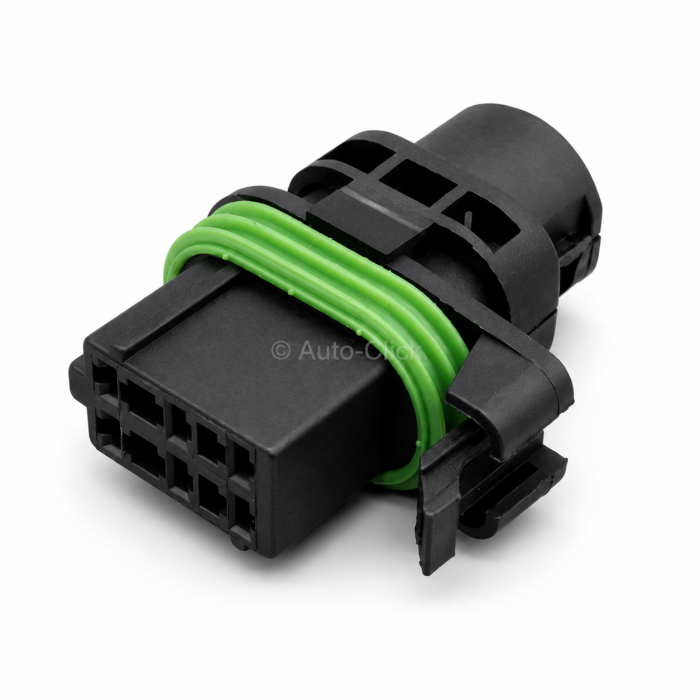

The Component: Genuine Aptiv / Delphi 211PC063S0003. 6-Way female automotive inline sealed connector plug housing for female socket receptacle contacts (Black).

Series Taxonomy: Aptiv SICMA 2.8 Sealed Series (formerly Delphi / FCI platform). A highly specialized, high-integrity European automotive interconnect system engineered explicitly to maintain flawless electrical insulation and low-voltage power distribution across moisture-heavy, vibration-prone structural zones.

Terminal Interface: 6-pin dual-row (2x3 matrix) cavity layout featuring a robust 6.0mm pitch centerline spacing and 5.0mm row spacing, configured explicitly to house clean-body SICMA 2.8mm size female receptacle socket contacts.

Locking and Sealing Security: Environmentally sealed to a high-performance IP rating to survive intense under-hood exposure, water washdowns, and road spray. Relies on an integrated inner perimeter silicone compression matrix and individual wire mat sealing blocks to preserve absolute circuit isolation. Employs a pre-staged primary structural housing lance system ensuring robust Terminal Position Assurance (TPA) to completely eliminate contact pin back-out under severe axial wire harness pulling. Structural mating is governed by a heavy-duty, highly tactile top mechanical integrated locking latch.

Mating Complement: Connects inline wire-to-wire or wire-to-device by mating directly onto its corresponding 6-way male tab counterpart inline housing or device shrouded header under part number 211PL063S0003.

Common Applications: Extensively specified as a factory original equipment (OE) mainstay across major European passenger vehicle networks, most notably within French and global platforms such as Renault, Peugeot, Citroën, and Fiat. Most frequently deployed as the primary, high-exposure factory wire harness side repair pigtail for high-current fuel pump module assemblies, fuel tank sending units, complex dashboard-to-chassis inline harness sectioning junctions, and specialized cockpit transitions. Highly vulnerable to exterior locking latch snapping, plastic fatigue from under-hood thermal aging, or structural casing damage if pried open aggressively with uncalibrated hand tools during deep fuel tank or fuel line maintenance.

Aptiv 211PC063S0003 SICMA 2.8 Series 6-Way Sealed Female Fuel Pump and Chassis Plug Housing

Eliminate intermittent fuel pump current dropouts, clear frustrating fuel sending unit fault codes, and reinstate maximum weatherproof insulation inside your vehicle's management loom with the genuine Aptiv 211PC063S0003 6-way female sealed automotive connector plug. Precision-manufactured to strict Tier-1 original equipment global automotive engineering standards by Aptiv (formerly Delphi/FCI), this 6-pin SICMA 2.8 series receptacle carrier block is an indispensable piece for executing professional harness repairs, pigtail fabrications, and clean-body wiring restorations. Designed with a robust 2-row matrix layout optimized around the heavy-duty 2.8mm terminal footprint, it establishes a solid, high-conductivity transition channel that safely runs moderate current delivery and data feedback loops simultaneously without risking localized resistance spikes.

The 211PC063S0003 carrier housing is injection-molded from a premium, heat-stabilized Polybutylene Terephthalate (PBT) compound finished in a factory black profile, ensuring exceptional impact defense, outstanding dimensional stability, and complete immunity to chemical degradation from engine oils, fuel vapors, and environmental salt spray. Working in absolute uniformity with its internal silicone perimeter compression seals, it constructs an impenetrable barrier that isolates raw signal and power lines from moisture tracking, heavy road grime, fuel tank vapor films, and abrasive dirt. Precision-molded polarization guides ensure immediate, error-free alignment with the matching 211PL063S0003 male tab header during assembly or field maintenance. This authentic replacement component allows independent auto-electrical trade specialists, fleet diagnostic garages, and custom motorsport loom builders to deliver traceable, factory-correct wiring restorations.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 211PC063S0003 (Brand: Aptiv / Delphi / FCI Genuine Class)

- Part Number Alias Cross-Reference: 10723553 (Global Market Index Profile)

- Configuration: 6-Way Female Receptacle Housing, 2-Row (2x3) Matrix Layout

- Product Series Taxonomy: SICMA 2.8 Sealed Interconnect System Class

- Centerline Pitch Matrix: 6.0mm Pitch spacing with 5.0mm Row spacing

- Target Terminal Interface: Accepts clean-body SICMA 2.8mm wide female socket contacts

- Base Structural Compound: Premium High-Temperature Polybutylene Terephthalate (PBT)

- Sealing Classification: Waterproof / Dustproof High-Performance Environmental Shielding

- Primary Structural Companion: Mates directly with male inline tab housing part number 211PL063S0003

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, fleet service hubs, and trade auto-electrical stockists.

Number of Positions: 6

Gender: Female

Mounting Style: Cable

Color: Black

Height: 21.8 mm

Housing Material: Polybutylene Terephthalate (PBT)

Length: 40 mm

Number of Rows: 2 Row

Width: 24 mm

Brand: Aptiv (formerly Delphi)

Pitch: 6 mm

Row Spacing: 5 mm

Product Type:Automotive Connectors

Tradename: SICMA
