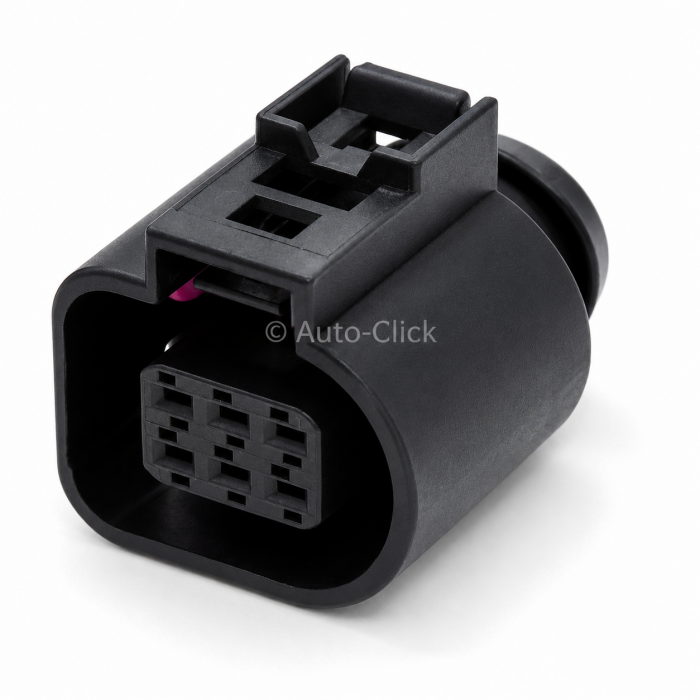

VAG 5N1-973-206 6-Way Female 1.5mm Throttle Body Plug

The Component: Genuine VAG 5N1-973-206 6-way automotive sealed female socket housing plug. 1.5mm Sealed Flat Contact Series 6-position double-row receptacle casing (Black / PBT+G / Sealed / 2x3 Layout / Coding I Configuration / Factory Product Cross-Ref: 5N1973206 / Associated Component Code: 4H0-973-713 Array / Industry-Standard Code: 42151100).

Applications & Fitment: Designed as a high-reliability factory original equipment (OE) harsh-environment connection solution for critical low-voltage powertrain data lines and electronic actuator networks. Extensively specified across the Volkswagen Audi Group platform grid (including Volkswagen, Audi, Seat, Skoda, and Cupra models) as the definitive female connection interface for high-duty electronic throttle body assemblies (throttle valve control units) and pedal level sensor arrays.

Engineered to maintain absolute circuit continuity and environmental sealing integrity under severe under-hood thermal cycles, direct exposure to grease, moisture, and intense engine bay harmonic vibrations. Highly vulnerable to primary external mechanical retention latch fracture if forced or carelessly pried with generic flathead screwdrivers during standard intake tract or throttle body servicing, or internal silicone mat distortion if field diagnostic technicians attempt un-profiled rear-probing with standard multi-meter leads.

Technical Attributes:

- Manufacturer Part Number: 5N1-973-206 / 5N1973206 (Brand: VAG / Genuine Factory Trade Class)

- Associated Structural Overlap Code: 4H0-973-713 / Baseline Industry Sourcing P/N: 42151100

- Product Series Taxonomy: VAG Flat Contact Housing Series / 1.5mm Sealed Interconnect Group (Double-Row Grid)

- Configuration: 6-Position / 6-Way Female Receptacle Housing, Double-Row 2x3 Configuration Layout Profile

- Connector Style: Plug Housing for Female Socket Contacts (Inline Shroud Profile)

- Connection Layout Type: Wire-to-Device or Wire-to-Wire Interconnect Channel

- Terminal Seating Sizing: Engineered to accept 1.5mm nominal width flat female box socket terminals (Coding I Alignment Tracking)

- Base Structural Compound: Premium Glass-Fiber Reinforced Polybutylene Terephthalate (PBT+G / PA66+GF) high-stability automotive engineering polymer

- Color Profile: Factory Solid Black Shroud

- Fastening & Locking Architecture: Integrated robust external mechanical squeeze-and-release thumb-latch locking clip built directly onto the casing shell

- Environmental Sealing Level: High-performance watertight, dustproof, and splashproof protection certified for exposed under-hood positions; relies on an internal high-compression silicone rubber perimeter face seal and isolated individual rear wire seal cavities

- Circuit Performance Thresholds: Certified low-voltage vehicle logic, throttle actuator telemetry, and safety-critical electronic control system infrastructure

- Operational Thermal Window: Premium severe-duty parameters engineered to handle extreme engine compartment operating cycles from -40°C up to +120°C

- Target Female Terminal Contacts (Not Included): Fits standard VAG/TE Connectivity AMP MCP 1.5K series female flat box socket crimp terminals with locking lances, typically handling wire cross-sections from 0.50mm² to 1.00mm² (20-18 AWG) or up to 1.50mm² thin-wall cabling lines

- Associated Rubber Wire Seals (Not Included): Accommodates standard silicone single-wire cavity rubber insulation seals matching your target wire outer diameter limits to preserve structural waterproof vacuum integrity

- Mating Counterpart Interface: Pairs seamlessly as the direct female partner to matching 6-way male pin device headers, electronic throttle valve control nodes, or corresponding 1.5mm series male tab inline cap assemblies (such as the 3B0-973-813 inline male coupling array)

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, loom remanufacturers, and trade auto-electrical stockists.
