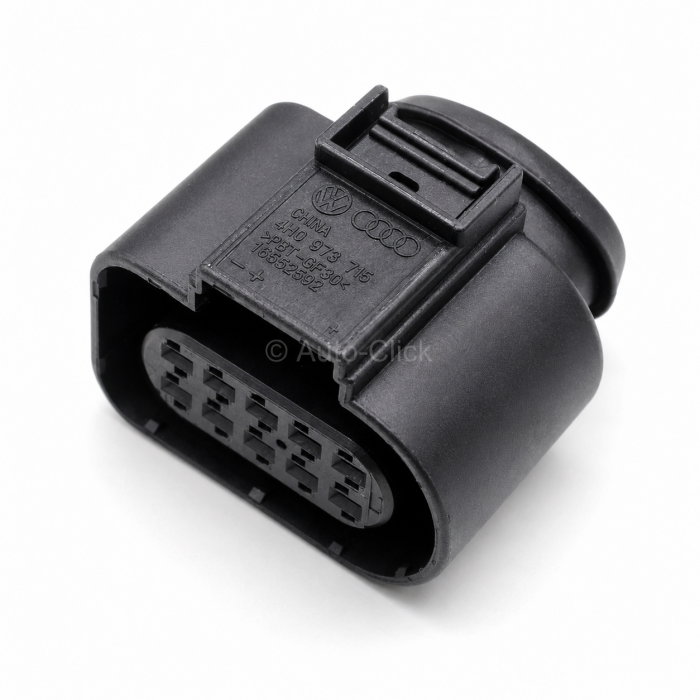

VAG 4H0973715 10-Way Female Sealed Connector Plug

The Component: Genuine VAG high-performance 10-way sealed female connector housing. 1.5mm Sealed Series / 10-Position (10P) dual-row flat contact terminal layout / Standard Black mechanical profile / Impact-hardened PBT-GF15 automotive grade thermoplastic body / Integrated secondary lock mechanism / High-density engine bay, headlight, and auxiliary sensor matrix interface component / VAG Part Number: 4H0973715 / Original Manufacturer: FEP (FEP Reference: 42121700).

Applications & Fitment: Engineered to strict original equipment (OE) factory specifications for modern Volkswagen Audi Group (VAG) vehicles, including Audi, Volkswagen, Seat, and Skoda platforms. This high-density 10-pin female plug is highly utilized across advanced automotive systems, most notably for multi-function LED headlight assemblies, radar/driver-assistance camera systems, electronic steering rack interfaces, and complex engine compartment sensor networks. The physical layout utilizes a space-saving dual-row (2x5) configuration that packs 10 discrete circuits within a rugged, vibration-dampened footprint. Featuring an integrated primary locking arm, it ensures a positive mechanical snap-lock connection onto male device headers or inline dock interfaces, preventing loose connections from engine resonance. Designed for absolute environmental resilience, it relies on an internal mat seal or individual wire grommets to prevent water, oil, and dust ingress under extreme IP67/IP69K operating conditions. Perfect for professional vehicle wiring loom repairs, custom motorsport harness builds, and direct trade workshop replacements.

Technical Attributes:

- VAG Factory Part Number: 4H0973715 (Also matches: 4H0 973 715)

- Production Manufacturer: FEP Fahrzeugelektrik Pirna

- Product Series Classification: 1.5mm Sealed Series (Flat Contact System)

- Number of Cavities: 10 Positions (Dual-Row 2x5 Configuration)

- Housing Gender Architecture: Female Receptacle Plug

- Color & Keying Profile: Black Housing Body

- Primary Terminal System Compatibility: Accepts 1.5mm terminal blades (such as TE Connectivity MCP 1.5K or equivalent flat contact variants)

- Integral Safety Mechanism: Integrated secondary terminal locking bar

- Environmental Sealing Rating: IP67 / IP69K Waterproof Protection

- Housing Material Composition: Glass-reinforced PBT-GF15 for maximum dimensional stability

- Safe Operating Temperature Range: Minimum -40°C to Maximum 125°C continuous exposure

- Mating Component Reference: Connects directly to corresponding 10-pin male headers or device pins (Cross-mate reference: 4H0973815)

- Trade Packaging Logistics: Provided as a standalone bare housing shell, a complete connector kit (supplied with premium crimp terminals and silicone wire seals), or a fully populated wire pigtail. Trade bulk tier discount adjustments are applied instantly inside the cart for auto-electrical wholesale trade buyers.
