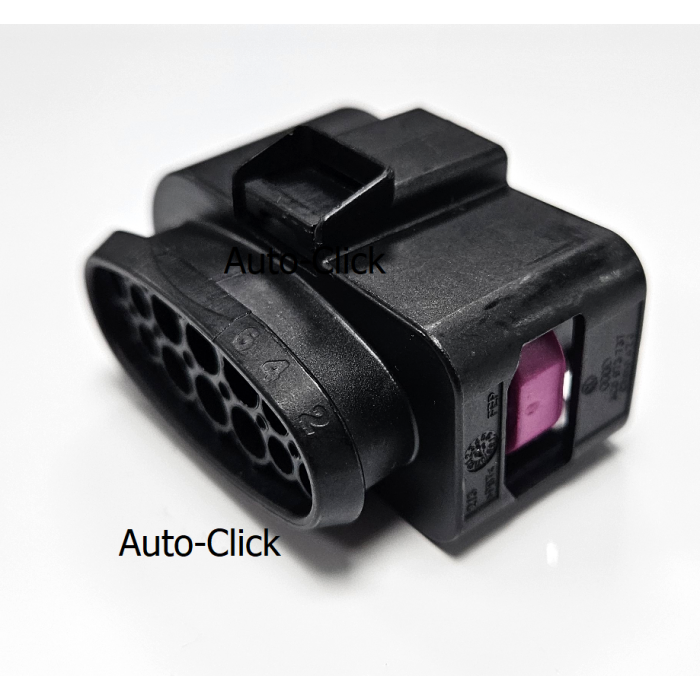

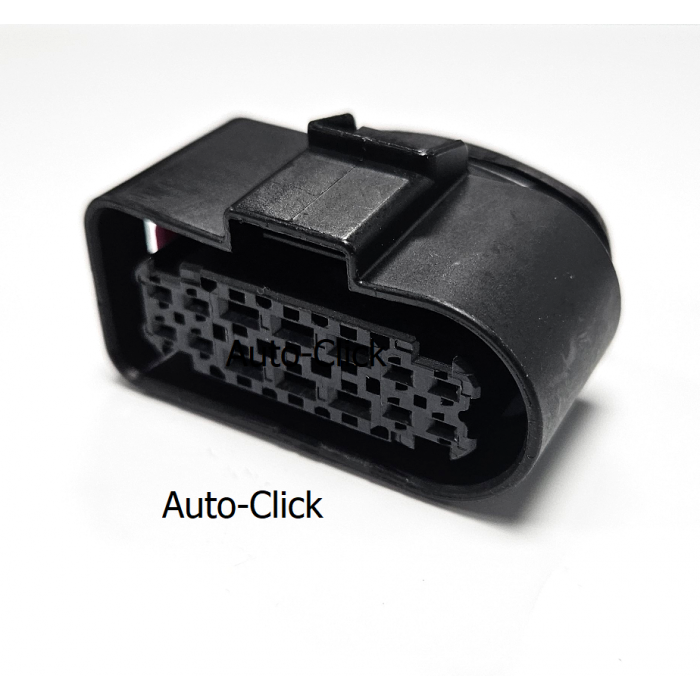

VAG 3C0973737 14-Way Sealed Female Headlight Connector

The Component: Genuine VAG OEM 14-position high-density sealed female flat contact receptacle / Premium Volkswagen Audi Group automotive multi-pin inline plug assembly / Advanced hybrid terminal matrix layout (8 x 1.5mm channels + 6 x 2.8mm power channels) / Integrated side-loaded violet/pink secondary terminal position assurance (TPA) locking slide / Top-mounted structural snap-fit mechanical retention latch / Molded from premium-grade, rugged, weather-stabilized Polyamide (PA66) / Component Part Number: 3C0973737 / Alternate Engineering Reference: 3C0972737 / 3C0 973 737.

Applications & Fitment: High-performance, waterproof, and vibration-proof interconnect system designed for exterior vehicle electronics and harsh engine bay environments across Volkswagen, Audi, SEAT, and Škoda automotive platforms. This authentic 14-pin VAG female housing block is the factory-specified main interface most notably used for high-intensity discharge (HID), xenon, and matrix LED headlamp assemblies, adaptive front-lighting systems (AFS), front-end parking radar networks, and complex bumper-mounted sensor looms. Engineered for absolute protection against harsh elements, its heavy-duty outer shell houses a high-visibility yellow silicone perimeter seal that completely insulates the mating plane from water, dust, engine fluids, and road salt. The side-mounted violet secondary lock ensures strict terminal position assurance (TPA); once the mixed-size crimp contacts are seated into place, closing this slide mechanically bars the terminals from backing out under severe chassis resonance or accidental pull. An essential service item for automotive electrical engineers, professional lighting retrofitters, and high-volume wholesale trade suppliers.

Technical Attributes:

- Manufacturer Part Number: 3C0973737 / 3C0 973 737 (Base Tooling: 3C0972737) (Brand: VAG / Volkswagen Audi Group)

- Product Component Classification: Sealed Hybrid Female Flat Contact Housing Block

- Total Position Count: 14-Way / 14-Cavity Female Plug

- Cavity Layout Matrix: Dual-Row Mixed-Diameter Hybrid Matrix (8 x 1.5mm micro-power + 6 x 2.8mm flat timer power circuits)

- Terminal Position Assurance: Side-loaded violet/pink secondary lock retainer plate

- Primary Locking Mechanism: Integrated heavy-duty top-mounted flexible nylon retention latch

- Ingress Protection Status: Fully Waterproof / Weatherproof Sealed (Includes pre-fitted internal perimeter silicone rubber interface seal)

- Base Structural Material: Polyamide 66 Weather-Stabilized (PA66)

- Color Profile: Deep Black housing shell with a high-contrast violet accent clip and yellow inner seal

- Physical Dimensions: Length: 36.2 mm | Width: 48.4 mm | Height: 24.5 mm

- Commercial Procurement Status: Provided as a single pre-assembled bare housing unit with its integrated perimeter seal and secondary lock slide. Crimp socket terminals, individual single-wire seals (SWS), and matching male interfaces are supplied independently. Volume-based trade wholesale discounts apply automatically in the basket.
