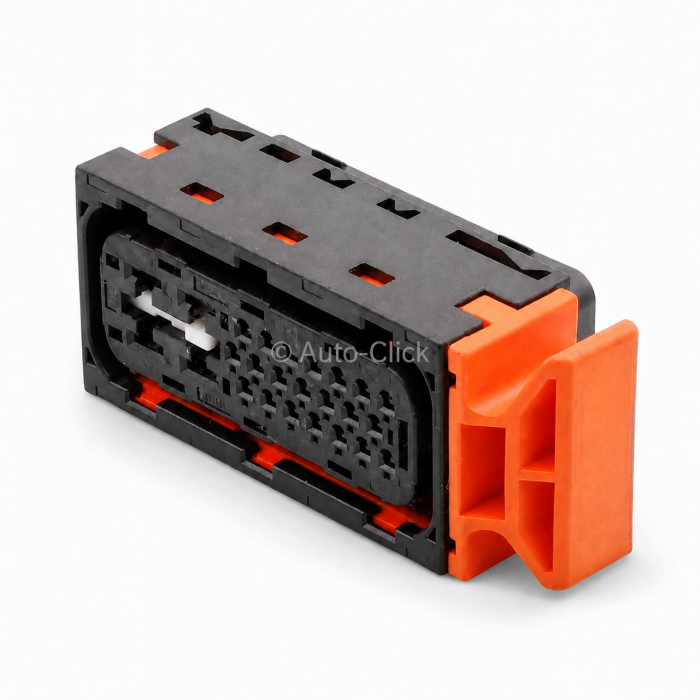

The Component: Genuine TE Connectivity 316874-1. 25-Way female automotive connector plug assembly for socket contacts (Black/Red Components).
Series Taxonomy: TE Connectivity Automotive Plug System. A heavy-duty, multi-position global automotive interconnect platform engineered by TE Connectivity to deliver faultless data bus management and low-voltage electrical distribution across severe, high-vibration chassis locations.
Terminal Interface: 25-pin three-row matrix cavity layout configured explicitly to house small-footprint female socket receptacle terminal contacts across high-density circuit maps.
Locking and Sealing Security: Environmentally sealed to protect critical low-voltage grids from chemical exposure and moisture entry across an operating threshold certified from -40 to +120 degrees Celsius. Leverages a specialized primary locking channel structure with high-visibility red accent secondary locking frames to provide definitive Terminal Position Assurance (TPA), entirely eliminating the risk of micro-pin back-out under severe axial wiring strain.
Mating Complement: Connects wire-to-device or wire-to-wire by locking directly onto its corresponding 25-way male terminal interface, circuit board header, or factory module socket shroud.
Common Applications: Extensively specified across prominent global passenger car and braking system platforms, including notable installations on Honda and major European/American factory electrical networks. Most frequently deployed as the primary, high-integrity harness-side repair plug for Anti-lock Braking System (ABS) control modules, stability control nodes, electronic chassis control units, and multi-pin vehicle body control interfaces. Highly vulnerable to structural plastic side-latch damage, red slide retainer fracture, or moisture entry if servicing with uncalibrated field hand tools during complex electronic chassis diagnostics.
TE Connectivity 316874-1 25-Way Sealed Female Automotive ABS Module and Chassis Plug Housing
Eliminate intermittent anti-lock braking faults, clear persistent traction control dashboard warnings, and reinstate maximum weatherproof insulation within your vehicle's braking loom with the genuine TE Connectivity 316874-1 25-way female sealed automotive plug housing. Precision-manufactured to strict Tier-1 original equipment global engineering parameters by TE Connectivity, this 25-pin multi-row contact carrier assembly is an indispensable component for executing long-term harness overhauls and trade module connector repairs. Designed with a dense 3-row inline matrix optimized for micro-terminal configurations, it establishes a solid, multi-channel electrical transition path that handles sensitive signal lines and lower-voltage power pathways simultaneously without risking localized resistance scaling.
The 316874-1 carrier block is injection-molded from a premium, heat-stabilized, glass-filled PBT/Polyamide compound finished in a factory black tone with a red locking accent, ensuring outstanding impact defense, high dimensional tracking accuracy, and absolute immunity to automotive fluid degradation across severe chassis and engine-adjacent zones. Working in absolute uniformity with internal silicone compression seals and pre-staged wire isolation systems, it constructs an impenetrable defense line that isolates raw telemetry lines from moisture tracking, brake fluid vapors, heavy road grime, and abrasive dirt. The integrated secondary slide lock ensures positive terminal seating and solid structural connection. This authentic component allows independent auto-electrical trade specialists, diagnostic garages, and custom loom builders to deliver traceable, factory-correct wiring restorations.
Engineering Specifications and Technical Attributes:
- Manufacturer Part Number: 316874-1 (Brand: TE Connectivity / AMP)
- Configuration: 25-Way Female Receptacle Housing, 3-Row Matrix Layout
- Product Series Taxonomy: Automotive Sealed Multi-Position Class
- Contact Interface Count: 25 populated or dummy-plugged cavity options
- Sealing Classification: Waterproof / Dustproof Weatherproof Sealing Protection
- Operating Temperature Envelope: Robust -40 to +120 degrees Celsius capability
- Locking Security: Integrated primary terminal lanes with high-visibility red secondary locking slider (TPA)
- Primary System Allocation: Frequently deployed as a factory-grade ABS control connector plug
- Associated Component Compatibility: Fits standard TE automotive crimp terminals and corresponding rubber seals
- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, fleet service hubs, and trade auto-electrical stockists.
