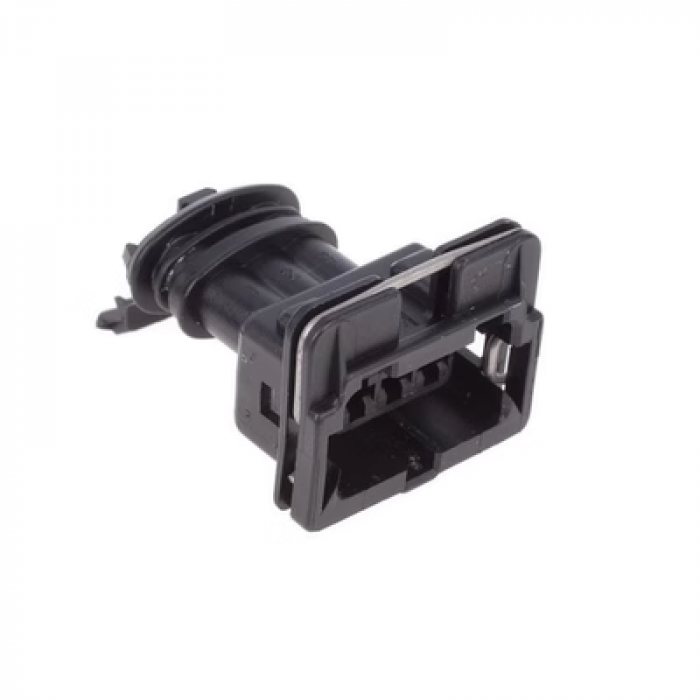

282729-1

Terminals and seals are included

3 Way Automotive Connector

Housing for Female Terminals, Wire-to-Device / Wire-to-Board, 3 Position, .196 in [5 mm] Centerline, Sealable, Black, Timer Connector System

Product Type Features

Connector Shape : Rectangular

Connector & Housing Type : Housing for Female Terminals

Connector System : Wire-to-Board, Wire-to-Device

Sealable : Yes

Hybrid Connector : No

Primary Locking Feature : On the Terminal

Connector & Contact Terminates To : Wire & Cable

Configuration Features

Number of Positions : 3

Number of Rows : 1

Electrical Characteristics

Operating Voltage (VDC): 24

Nominal Voltage Architecture (V): 24

Body Features

Cable Exit Angle : 180°

Primary Product Color : Black

Connector & Keying Code : Neutral

Contact Features

Contact Type : Receptacle

Contact Size : 2.8mm

Mating Tab Width : 2.8 mm [ .11 in ]

Contact Current Rating (Max) (A): 20
