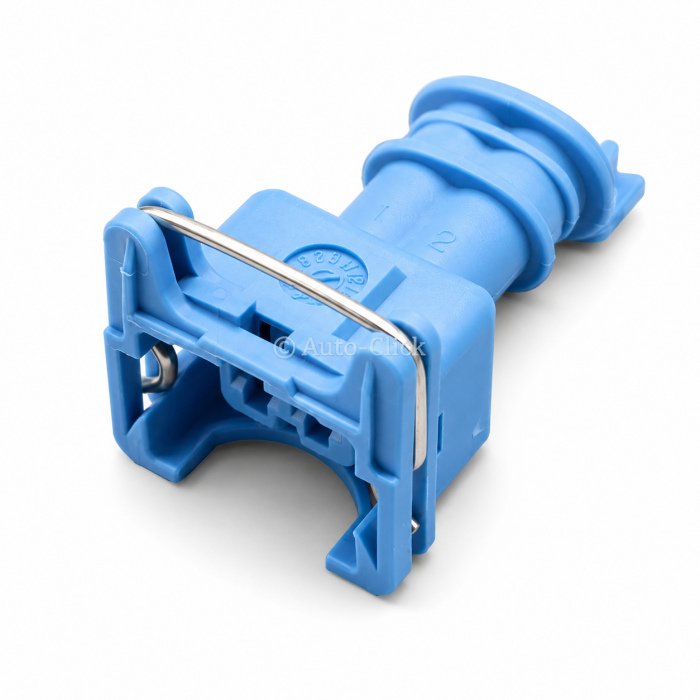

TE Connectivity 282189-5 JPT 2-Way Female Connector Housing

The Component: Genuine TE Connectivity / AMP OEM 2-position female socket housing / Junior Power Timer (JPT) 2.8mm Sealed Series waterproof automotive connector plug / Compact 1x2 single-row inline cavity layout / External stainless steel spring wire bail latch mechanism with integrated internal silicone weather seal / Molded from premium, heat- and chemical-resistant Polybutylene Terephthalate (PBT) resin / Component Part Number: 282189-5 / Alternate Identifiers: TE 282189-5 / AMP 282189-5 / 0-0282189-5 / JPT 2-Pin Blue Female Plug / 2.8mm 2-Way Injector Plug / Bosch EV1 Blue Injector Connector / VAG 2-Pin Blue Temp Sensor Plug.

Applications & Fitment: High-reliability waterproof female electrical connector housing engineered for engine bay, powertrain, and chassis sensor sub-harnesses across VAG (VW, Audi, SEAT, Škoda), BMW, Mercedes-Benz, Volvo, Porsche, Fiat, and European automotive platforms. Designed specifically for two 2.8mm female socket contacts (Junior Power Timer series) and individual silicone wire cavity seals on a single-row layout. Mates directly with male connector housing TE 282236-5 and standard 2.8mm 2-pin keyway sensor headers. Widely specified for Bosch EV1 fuel injectors, engine coolant temperature sensors (CTS), intake air temperature (IAT) sensors, knock sensors, boost control solenoid valves, windscreen washer pumps, and power steering switches requiring full IP67 weatherproofing integrity. Engineered to withstand continuous engine compartment vibration, severe fluid exposure (oils, fuel, washer fluid), and extreme thermal cycling (-40 to 120 degrees Celsius). Essential stock for auto-electricians, European vehicle specialists, engine reconditioners, harness builders, and trade distributors.

Technical Attributes:

- OEM Part Number: 282189-5 / 0-0282189-5 (Manufacturer: TE Connectivity / AMP)

- Product Component Classification: 2.8mm Female Socket / Receptacle Connector Housing Device

- Connector Family Series: TE Connectivity Junior Power Timer (JPT) Sealed Series

- Connection Type: Wire-to-Wire / Wire-to-Device Inline Female Receptacle

- Total Position Count: 2-Way / 2-Pin Female Plug

- Cavity Layout Matrix: 1 Row x 2 Columns Inline Configuration Profile

- Compatible Terminal Blade Width: 2.80 mm Female Socket Contacts (Junior Power Timer Receptacles)

- Terminal System Compatibility: Accepts TE Junior Power Timer female crimp socket terminals (e.g., 927771, 927770, 929939 series) and individual silicone wire cavity seals (e.g., 828904-1 / 964971-1 series)

- Directly Mating Part Number: TE Connectivity 282236-5 (JPT 2.8mm Sealed Series 2-Way Male Housing)

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (IP67 Rated)

- Retention Locking Mechanism: External Stainless Steel Wire Quick-Release Spring Latch

- Structural Material Base: Premium Grade Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Blue Body with Internal Silicone Seal

- Operating Temperature Limit: -40 to 120 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way female housing assembly with pre-fitted internal silicone seal and stainless steel wire latch. Female socket crimp terminals, individual wire seals, and mating male connector housing assemblies (282236-5) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
