872-406-501 SealStar 1.2mm Series 2-Way Housing

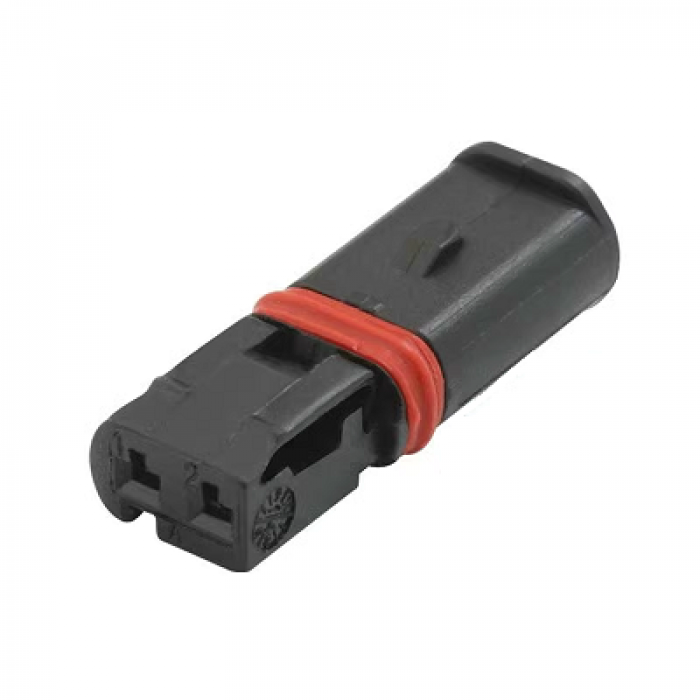

Hirschmann 872-406-501 SealStar 1.2mm Series 2-Way Shroudless Female Sensor Plug

Restore flawless data signaling and ultimate moisture isolation to low-voltage exterior body telemetry loops with the genuine Hirschmann 872-406-501 2-way female connector plug. Precision-engineered by Hirschmann to strict original equipment manufacturer parameters, this 2-pin single-row receptacle housing belongs to the high-density SealStar 1.2mm shroudless interconnect family. Outfitted with an integrated internal high-compression silicone face seal and individual cable-entry tracks, it forms a robust environmental barrier certified to IPX7 and IPX9K standards, deflecting high-temperature oil vapors, road spray, salt fog, and targeted high-pressure steam cleanings.

The 872-406-501 carrier block is molded from premium glass-fiber reinforced polyamide (PA66+GF) finished in an industrial black tone, delivering outstanding structural rigidness and defense against thermal aging across a severe operating temperature window of -40°C to +150°C. The internal 2-position cavity matrix operates on a compact 4.0mm centerline pitch, engineered explicitly to accept 1.2mm width female socket contacts—including TE MCON 1.2 and Kostal MLK 1.2 series terminals. It utilizes clean mechanical Coding A rails to ensure foolproof, error-free mating on dense wiring branches. Extensively relied upon across European platforms (particularly as a primary BMW service component) to manage 2-wire comfort entry door handle sensors, exterior mirror telemetry, turn signal lamps, and fender thermostat sensors, this authentic replacement housing enables harness specialists to execute clean, zero-resistance factory pigtail repairs right on the service bench.

### Engineering Specifications & Technical Attributes:

* **Manufacturer Part Number:** 872-406-501 (Series: SealStar 1.2mm Shroudless)

* **Configuration:** 2-Way Female Receptacle, Single-Row Inline

* **Mechanical Coding Index:** Coding A (Black Grid Configuration)

* **Terminal Cavity Footprint:** 1.2mm flat socket terminal systems (e.g., MCON 1.2 / MLK 1.2)

* **Centerline Pitch Grid:** 4.0mm spacing layout

* **Wire Gauge Range Compatibility:** Accommodates thin-wall conductors from 0.13mm² to 1.0mm² (26–18 AWG)

* **Sealing Classification:** Environmentally Sealed (IPX7 / IPX9K Pressure Washdown Compliant)

* **Material Substrate:** Heat-stabilized, impact-resistant Polyamide (PA66+GF)

* **Primary OEM Application Alignment:** BMW comfort access door handles, side indicators, and ambient sensors

* **Commercial Access:** Tiered B2B wholesale trade volume brackets apply automatically at checkout for auto-electrical workshops, diagnostic fleet garages, and custom motorsport harness assembly hubs.
