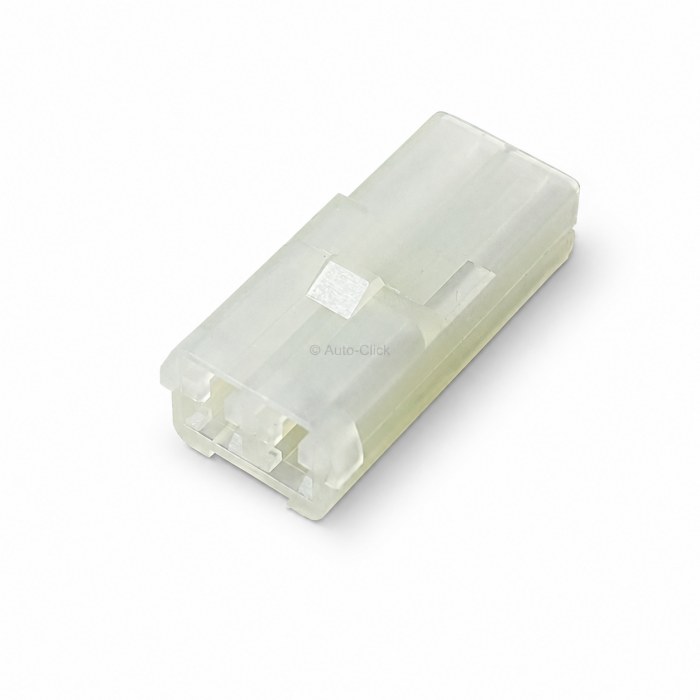

Yazaki 7123-1520 2-Way Female 2.3mm 090 Connector Housing

The Component: Genuine Yazaki OEM 2-position female receptacle housing / Premium 2.3mm (090) Series automotive connector plug / Compact 1x2 single-row inline cavity layout / External latching arm mechanism / Molded from heat-, chemical-, and impact-resistant Polyamide 6.6 (PA66) / Component Part Number: 7123-1520 / Alternate OEM Identifiers: 71231520 / Yazaki 7123-1520 / 2.3mm 090 2-Way Female Natural / Japanese Cabin & Interior Harness Plug.

Applications & Fitment: High-reliability non-sealed female electrical connector housing engineered for interior cabin, dashboard, and door sub-harnesses across Japanese OEM vehicle platforms (Toyota, Lexus, Nissan, Honda, Mazda, Mitsubishi, Subaru). Designed specifically for two 2.3mm (090) female receptacle contacts on a single-row layout. Widely specified for door lock actuators, power window switches, interior courtesy lighting, boot release switches, speaker wiring, and low-current auxiliary control modules. Engineered to withstand continuous cabin vibration and thermal cycling (-40 to 105 degrees Celsius). Essential stock for auto-electricians, Japanese vehicle specialists, wire harness repair technicians, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 7123-1520 / 71231520 (Manufacturer: Yazaki Corporation)

- Product Component Classification: 2.3mm (090) Female Receptacle Connector Housing Device

- Connector Family Series: Yazaki 2.3mm (090) Unsealed Series

- Total Position Count: 2-Way / 2-Pin Female Plug

- Cavity Layout Matrix: 1 Row x 2 Columns Inline Configuration Profile

- Compatible Terminal Blade Width: 2.30 mm (.090 Terminal System)

- Terminal System Compatibility: Accepts Yazaki 2.3mm (090) female crimp receptacle contacts (e.g., 7116-1230, 7116-1231 series)

- Ingress Protection Status: Unsealed / Non-Waterproof (Cabin & Interior Harness Application)

- Structural Material Base: Premium Polyamide 6.6 (PA66 Polymer)

- Color Profile: Factory Solid Natural / White Body

- Operating Temperature Limit: -40 to 105 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way female housing assembly. 2.3mm female receptacle crimp contacts and mating male connector housing assemblies are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
