6195-0043 / 06A973722
Our part2-AC277 RoHS
We ship worldwide, daily
Tracked delivery to 190+ countries by UPS, DHL or FedEx.
| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £2.30 | — |
| 10+ | £1.80 | |
| 100+ | £1.40 | |
| 1000+ | £0.90 |
1325 in stock
£2.30
each
Volume quotation (1k+)Fast reply from our RFQ team
Free UK delivery over £30
30-day returns
Full traceability
Secure checkout
Accepted:
Complete your connector
Matching terminals, seals and mating parts for this housing.
Terminals 1
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
Connectors and housings 1
Related housings in the same family or pin count.
Price isn't everything
This is a genuine SUMITOMO part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
Product description
Terminals and seals are included

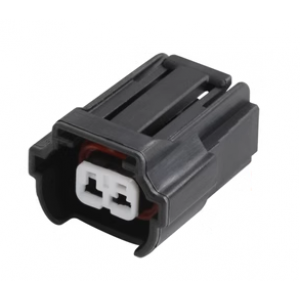

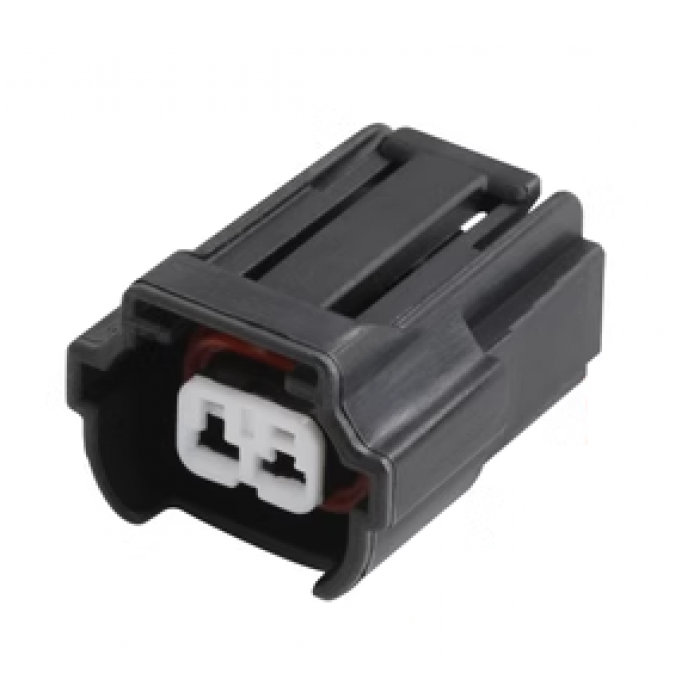

2 Way Automotive Connector
DL sealed series
Housing Device
2.3mm (090)
Sealed/Unsealed sealed
Male/Female F
Way 2
Materials PBT
Color Dark Gray
Contact resistance
Initial 3mΩ Max.
after durability tests 10mΩ Max.
Leak current 100μA Max.
Insulation resistance 100MΩ Min.
Seal
Initial 49.0kPa Min.
after durability tests 29.4kPa Min
6195-0043 2P090WP-DL-SPA-F-S 2P090WP-DL-SPA-F-L
