100 or more £1.60
1000 or more £1.20

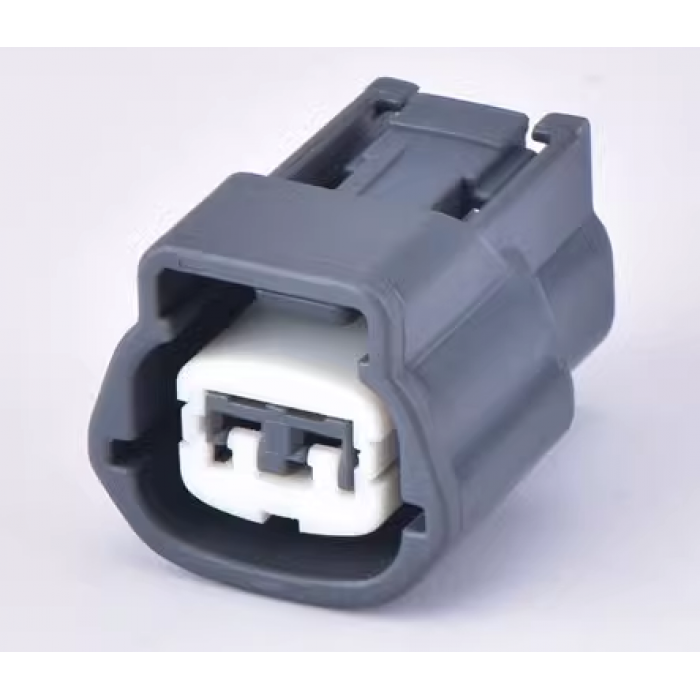

Original Sumitomo 6189-0772
Terminals, TPA 6918-1594 and seals are included
2 Way Automotive Connector
RS series
Housing Device
2.3mm (090)
Sealed/Unsealed Sealed
Male/Female Female
Way 2
Materials PBT
Color Gray
Contact resistance
Initial 3mΩ Max.
after durability tests 10mΩ Max.
Leak current 10μA Max.
Insulation resistance 100MΩ Min.
Seal
Initial 98kPa Min.
after durability tests 98kPa Min.
Terminal
8240-0264
RS series
Terminal For AV Wire
2.3mm (090)
Sealed/Unsealed Sealed
Male/Female Female
Tab Size 2.3mm (090)
Size M
Mating parts 8100-3804 (RS series)
Applicable wire size
0.85-1.25 mm2
Materials Heat-resistant copper alloy
Surface treatment Tin-plated
Contact resistance
Initial 3mΩ Max.
after durability tests 10mΩ Max.
Leak current 10μA Max.
Insulation resistance 100MΩ Min.
Seal
7165-0473
RS series
Wire seals
2.3mm (090)
Tab Size 2.3mm (090)
Size S
Male/Female Common
Applicable wire size
0.5-0.85mm2 AVSS
0.85-1.25mm2 CAVUS
Cable overall diameter (mm) 1.5-1.9
Materials Silicone
