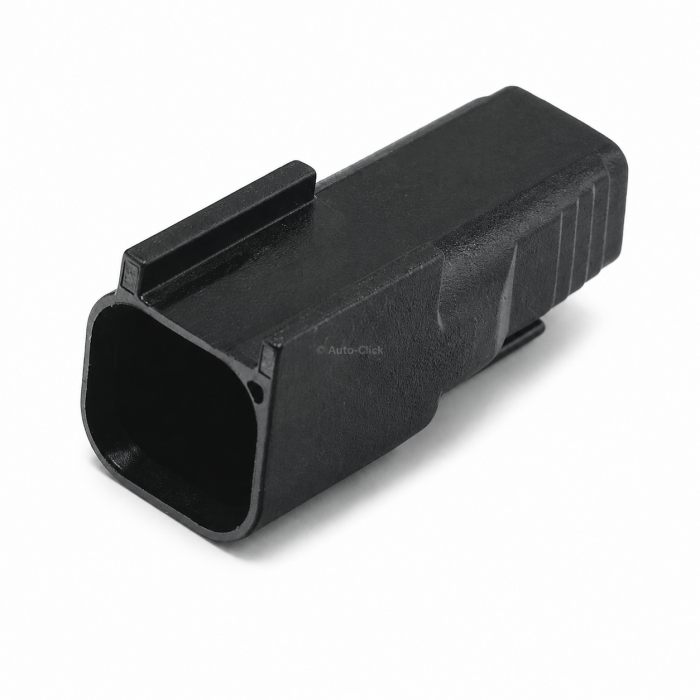

Sumitomo 6181-6492 SL Sealed 2-Way Male Connector Housing

Terminals and seals not included

The Component: Genuine Sumitomo OEM 2-position male tab housing / SL Sealed Series 1.5mm (060) waterproof automotive connector plug / Single-row 1x2 inline cavity layout / External top locking retention catch / Molded from high-grade, heat and chemical-resistant Polybutylene Terephthalate (PBT) resin / Component Part Number: 6181-6492 / Alternate OEM Identifiers: Sumitomo 6181-6492 / 61816492 / SL Sealed 2-Pin Male Housing / 1.5mm 2-Way Male Tab Plug / Inline Waterproof Male Connector / Honda Toyota 2-Pin Male ABS Sensor Housing.

Applications & Fitment: High-reliability waterproof male electrical connector housing engineered for chassis, wheel arch, bumper, and engine compartment sub-harnesses across Honda, Toyota, Nissan, Mazda, and Japanese OEM vehicle platforms. Designed specifically to hold two 1.5mm x 0.8mm male tab contacts (SL 060 series) with individual silicone wire seals. Mates directly with female housing Sumitomo 6189-1115. Widely specified for ABS wheel speed sensor harness extensions, front fog lamp jumper looms, side marker connections, horn assemblies, washer pumps, and exterior ambient temperature sensor harnesses requiring IP67 ingress protection against road spray, mud, and environmental contaminants. Essential stock for auto-electricians, Japanese vehicle specialists, harness repair technicians, and trade distributors.

Technical Attributes:

- OEM Part Number: 6181-6492 (Manufacturer: Sumitomo Wiring Systems)

- Product Component Classification: 1.5mm (060) Male Pin / Tab Connector Housing Device

- Connector Family Series: Sumitomo SL Sealed Series (1.5mm x 0.8mm Terminal System)

- Application Profile: Housing for Inline Cable-to-Cable Connections

- Connection Type: Wire-to-Wire Inline Male Shroud

- Total Position Count: 2-Way / 2-Pin Male Plug

- Cavity Layout Matrix: 1 Row x 2 Columns Inline Configuration Profile

- Compatible Terminal Blade Width: 1.50 mm x 0.80 mm Male Tab Contacts (SL 060 Male Terminals)

- Terminal System Compatibility: Accepts Sumitomo SL Sealed 1.5mm male tab crimp terminals and individual silicone wire seals

- Directly Mating Part Number: Sumitomo 6189-1115 (SL Sealed 2-Way Female Housing for Inline Clip Fixation - Black)

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (When Mated to Sealed Female Housing 6189-1115)

- Structural Material Base: Premium Grade Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Black Body

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way male housing assembly. Male tab crimp terminals, wire seals, and mating female connector housing (6189-1115) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
