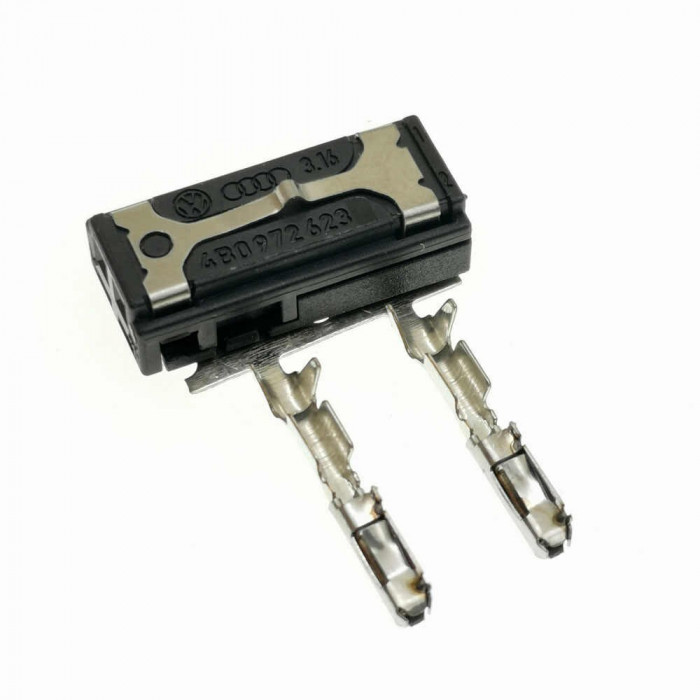

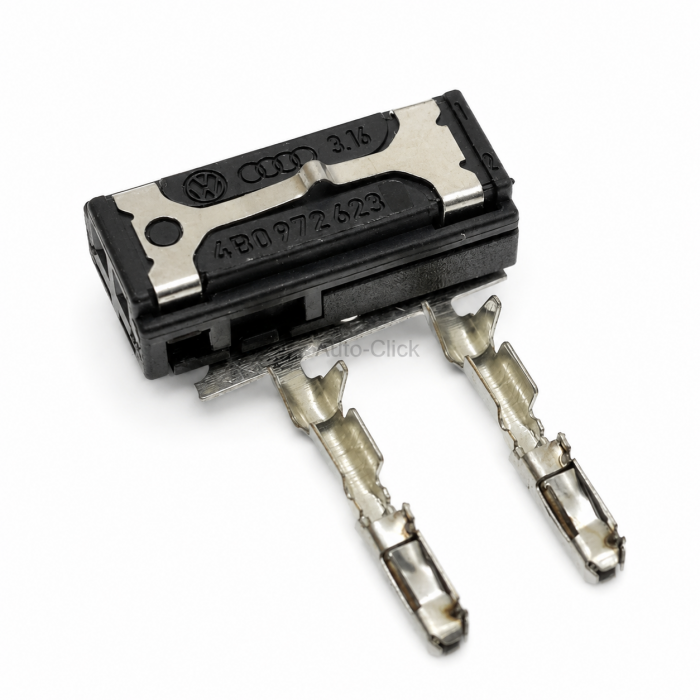

OEM VAG 4B0972623 2-Way Female MQS Connector Inc Terminals

The Component: Genuine Volkswagen Audi Group OEM 2-position female socket housing / Premium Micro Quadlok System (MQS) series unsealed automotive connector plug / Single-row 1x2 flat cavity matrix layout / Integrated locking latch mechanism with secondary terminal locking clip / Molded from heat-stabilized PA66 nylon resin / Component Part Number: 4B0 972 623 / Alternate OEM Identifiers: 4B0972623 / 4B0-972-623 / VAG 2-Pin MQS Connector Black.

Applications & Fitment: High-reliability unsealed female electrical connector housing engineered for interior cabin, tailgate, and audio electronics across Volkswagen Audi Group (VW, Audi, Seat, Skoda) vehicle platforms. Widely specified for Park Assist (PDC) warning buzzers / parking speakers, horn warning speakers, tailgate glass release switches, door-panel audio tweeters, and interior footwell lighting sub-harnesses requiring 0.63mm MQS female socket contacts. Features a compact low-profile design with an integrated secondary locking latch to prevent terminal pin back-out under vibration and thermal cycling (-40 to 105 degrees Celsius). Essential stock for auto-electricians, parking sensor repair specialists, audio retrofitting technicians, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 4B0 972 623 / 4B0972623 (Manufacturer: Volkswagen Audi Group / TE Connectivity)

- Product Component Classification: Micro Quadlok System (MQS) Female Connector Housing

- Connector Family Series: TE Connectivity / VAG MQS 0.63mm System

- Total Position Count: 2-Way / 2-Pin Female Plug

- Cavity Layout Matrix: 1 Row x 2 Columns Inline Configuration

- Compatible Terminal System: Accepts TE Micro Quadlok System (MQS) 0.63mm Female Crimp Contacts (e.g., 963727-1, 962885-1 series)

- Ingress Protection Status: Unsealed (Interior Cabin / Dry Location Application)

- Structural Material Base: Premium Heat-Stabilized Polyamide (PA66 Nylon)

- Colour Profile: Factory Black Body

- Operating Temperature Limit: -40 to 105 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way female housing assembly. Female MQS crimp terminals and mating male connector assemblies (such as 8E0 972 763) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
