18286000002 2-Way 1.5mm MKR Plus Sealed Housing inc Terminals/Seals

18286000002 2-Way 1.5mm MKR Plus Sealed Housing | Black

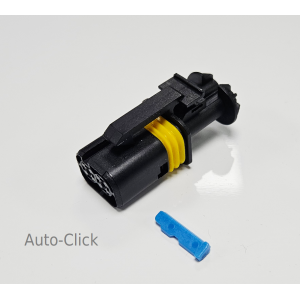

The Component: 18286000002 (18286.000.002) 2-way sealed female terminal housing block. MKR Plus 1.5mm terminal series classification / High-grade PBT+G glass-reinforced polymer / Code B keying configuration / Jet Black.

Applications & Fitment: Engineered as a high-reliability, weatherproof wire-to-wire or wire-to-component connection system. This 2-position female receptacle housing is a standard utility component across global automotive wiring harnesses—particularly prevalent in European passenger cars, light commercial fleets, and high-vibration engine bay architectures. Its primary duties include fuel injection management feeds, exterior sensor linkages, and low-current actuator junctions.

Featuring an integrated secondary locking mechanism, it guarantees positive terminal retention and resists back-out under harsh thermal or mechanical stress. Crucial notice: To maintain IP-rated environmental sealing integrity, matching single wire seals (SWS) must be applied to every populated cable path, and blanking plugs must be seated in any unpopulated cavities to prevent moisture ingress.

Technical Attributes:

- Manufacturer Part Number: 18286000002 / 18286.000.002 (TTI: 18286000002-B / Brand: Lear Corporation)

- Product Family Ecosystem: MKR Plus 1.5 Series Group

- Component Typology: Female Receptacle Terminal Housing

- Mating System Blade Width: Accepts 1.50mm series terminal contacts

- Mechanical Keying / Coding: Code B indexing

- Material Compound: PBT+G / Glass-fibre reinforced Polybutylene Terephthalate for maximum dimensional stability

- Component Color Coding: Jet Black (With distinct interior secondary lock carrier)

- Number of Positions / Rows: 2 Positions / 1 Row inline configuration

- Cable Exit Angle: 180° Straight rear wire dress orientation

- Environmental Protection Rating: Sealed system (Requires independent single wire seals)

- Operating Temperature Performance: High-endurance threshold rated from -40°C up to +120°C

- Associated Companion Parts: Accepts Lear MKR Plus 1.5mm female receptacle contacts (e.g., wire sizes 0.5 - 1.5 mm²) and matching silicone rubber cable cavity seals. Mates with corresponding 2-way male housings or pinned device headers.

- Packaging Format: Available as bulk wholesale component pieces for wiring loom fabrication, industrial assembly runs, and automotive trade electrical repair benches.
