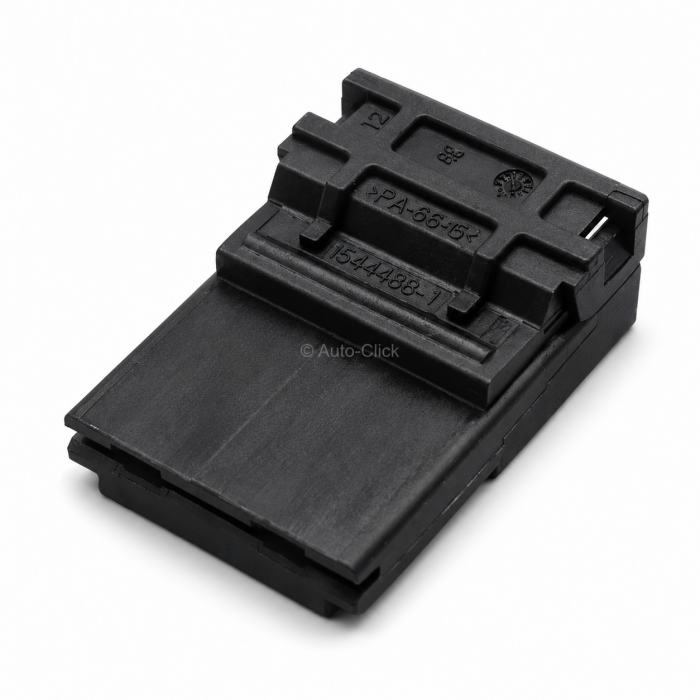

The Component: Genuine TE Connectivity 1544458-1 2-way unsealed terminal housing block. Positive Lock / 8.0mm (.315 in) connector series classification / Molded Jet Black premium Polyamide (PA) / Loose piece format.
Applications & Fitment: Designed as a heavy-duty, high-current wire-to-wire or wire-to-device receptacle housing. This unsealed block acts as the secure physical carrier for 8mm wide Positive Lock female terminals, featuring an integrated primary locking mechanism that prevents contact back-out under heavy operational vibration. Commonly deployed across European and global heavy commercial vehicle, passenger vehicle, and appliance power distribution architectures—including Ford electrical networks—for high-load paths such as HVAC blower motor systems, primary heating ventilation circuits, cabin main distribution feeds, and main relay line junctions. Highly vulnerable to tab distortion if forced onto non-standard 8mm mating blades without proper terminal alignment, or if subjected to direct spray environments without secondary external protective boot shielding.
Technical Attributes:
- Manufacturer Part Number: 1544458-1 / 0-1544458-1 (Brand: TE Connectivity / AMP / Original OE Specification)
- Product Family Ecosystem: 8mm Positive Lock Series Group
- Component Typology: Female Receptacle Terminal Housing
- Mating System Tab Width: 8.00mm (.315 in) heavy-power terminal series tracking
- Material Compound: Polyamide (PA) / Premium high-rigidity nylon
- Component Color Coding: Jet Black (Standard unsealed high-power variant)
- Physical Footprint Dimensions: Length: 22.60mm / Outer Width: 32.50mm / Outer Height: 11.80mm
- Centerline Contact Pitch: 10.90mm [.429 in] wide-profile isolated separation
- Number of Positions / Rows: 2 Positions / 1 Row linear configuration
- Cable Exit Angle: 180° Straight rear dress orientation
- Environmental Protection Rating: Unsealed (No cavity or perimeter rubber seals integrated)
- Primary Locking Feature: Integrated directly inside housing cavity paths
- System Current Suitability: High-Current Power Application Domain (Dependent on mated terminal gauge)
- Associated Companion Parts: Houses 8.0mm series Positive Lock female receptacle contacts; mates directly with 8.0mm wide male panel blades, device tangs, or matching male inline headers.
- Packaging Format: Supplied as individual loose pieces for harness production line assembly, prototype development, and trade field repair benches. Tiered wholesale volume pricing breaks apply at point of invoice.
