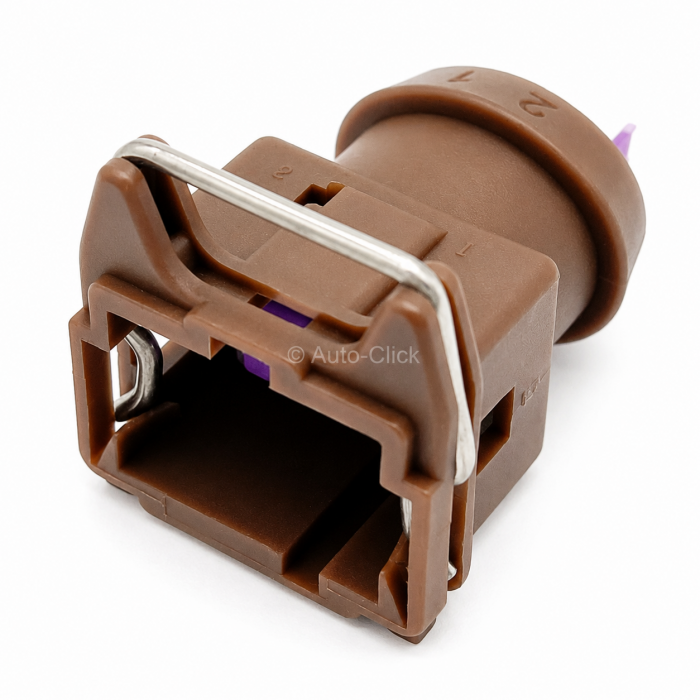

The Component: high-performance sealed female receptacle connector plug housing. Junior Power Timer (JPT) Style Series taxonomy / 2-position single-row female casing / Alternative Colorway Keying Profile (Earth Brown Housing Shell / Premium Unfilled PA66 / Sealed Waterproof / 1x2 Grid Layout / Female Inline Harness and Sensor Plug / Component Variant Alias: 144473-2 / Global Order Reference: 144473-2).
Applications & Fitment: Engineered as a premium, high-reliability replacement wire-to-wire or wire-to-device waterproof connection plug designed explicitly for heavy-duty powertrain management, industrial fueling systems, and chassis sensor arrays. This 2-pin female socket block is an absolute diagnostic and system loom staple across European passenger cars, commercial fleet frameworks, and heavy transport networks—prominently integrated inside VW, Audi, BMW, Mercedes-Benz, and PSA Peugeot-Citroën engine bays. It is standardly deployed across critical electrical sensor runs including coolant temperature senders, windshield washer fluid pumps, fuel vapor canister purge valves, brake fluid reservoirs, and select auxiliary solenoid triggers. It features an integrated heavy-duty steel wire bail snap latch mechanism that locks securely onto the mating male shroud's retention ledge, ensuring an absolute, low-tolerance retention hold that completely eliminates terminal back-out under severe engine block thermal cycles and continuous multi-axis vibrations. Engineered to conform to strict tier-1 automotive manufacturing validation guidelines, its internal terminal channels pair with standard wire seals to form an absolute, fluid-tight barrier against high-pressure washdowns, road spray salt misting, fine track dust penetration, and aggressive under-hood oil vapors. Note: This specific Earth Brown colorway configuration is mechanically keyed for precise circuit segregation, and standard workshop terminal service should always be handled via specific rear insertion tools to avoid fracturing the primary internal locking lance retention walls.
Technical Attributes:
- Manufacturer Part Number: 144473-2 (Brand: Aftermarket)
- Product Series Taxonomy: Junior Power Timer (JPT) / Junior Timer Interconnect Family Style
- Configuration: 2-Position / 2-Way Female Receptacle Plug, Single-Row 1x2 Linear Layout
- Pitch Dimension Centerline: 5.00mm nominal lane spacing
- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 2.8mm nominal blade width Junior Power Timer (JPT) series female receptacle socket terminals
- Connector Style: Receptacle Housing for Female Sockets (Free-Hanging Wire Loom or Direct Device Header Module Interface)
- Fastening & Locking Architecture: Features an integrated heavy-duty stainless steel wire bail snap spring latch locking arm assembly
- Environmental Sealing Level: High-performance waterproof and dustproof isolation utilizing a pre-installed internal rubber perimeter interface ring seal matrix and independent wire seals
- Base Structural Compound: Premium Heat-Stabilized Polyamide (PA66) engineering polymer for maximum thermal tracking resistance, robust structural impact toughness, and chemical dimensional memory
- Color Profile: Factory Standard Earth Brown housing block assembly
- Circuit Rating Threshold: Form-fitted for standard low-voltage signaling and medium-ampacity power distribution loops operating below 32V DC continuous
- Operational Thermal Window: High-end under-hood and chassis deployment layout certified to maintain material elasticity and seal compliance from -40°C up to +125°C
- Target Female Terminal Contacts (Included): Precision optimized to accept genuine TE JPT 2.8mm series female crimp sockets (requires individual cavity single-wire rubber seals to preserve full IP-rated waterproof isolation)
- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire harnesses or to device headers as the direct female partner to matching 2-way male JPT series interface pin systems
- Commercial Access: Available as loose individual workshop repair pieces, bulk wholesale packaging quantities, or master trade distributor stock runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
