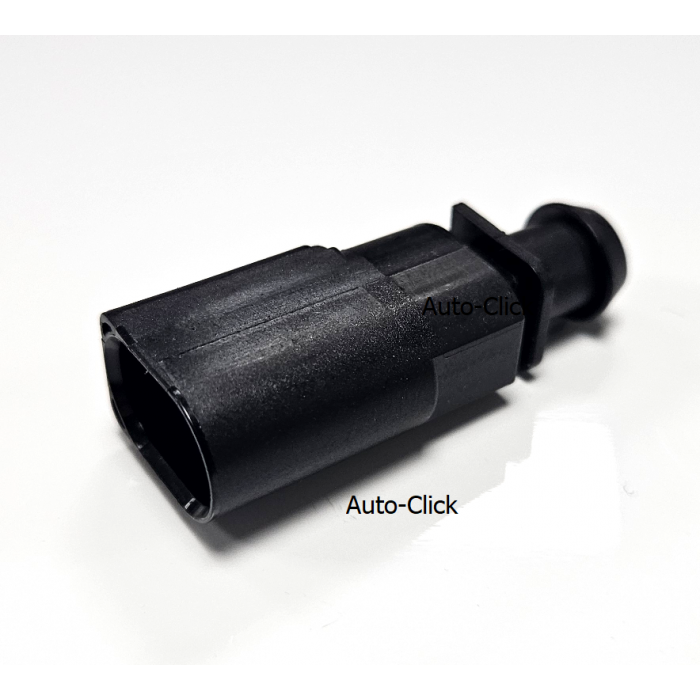

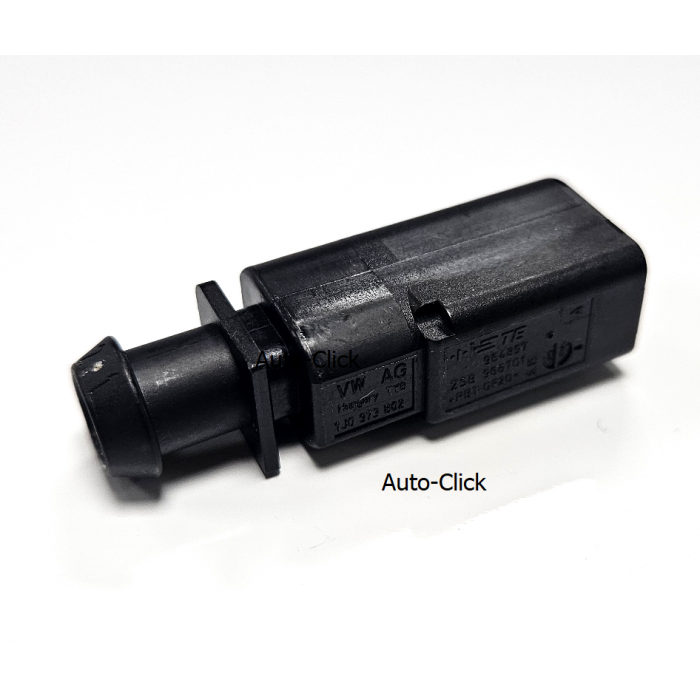

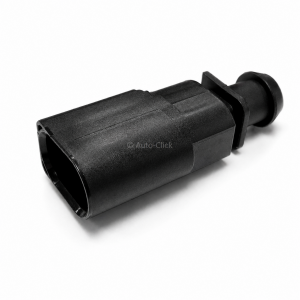

VW Audi 2 Pin Connector 1J0973802 Male 1.5mm

The Component: Genuine VAG high-performance sealed male tab connector plug housing. 1.5mm Sealed Series taxonomy / 2-position single-row linear male casing / Standard Keying Profile (Jet Black / Premium Glass-Reinforced PBT / Sealed Waterproof / 1x2 Grid Configuration / Male Inline Sensor Wire-to-Wire Plug / Component Variant Alias: 1J0-973-802 / Global Order Reference: 1J0973802).

Applications & Fitment: Engineered as a premium original equipment (OE) specification wire-to-wire waterproof connection plug designed explicitly for harsh, high-exposure vehicular environments. This 2-pin male terminal tab housing is a ubiquitous wiring harness staple across modern Volkswagen, Audi, Seat, and Skoda passenger vehicle platforms—frequently deployed for exterior sensors, brake pad wear indicators, ABS wheel speed sensors, side repeater turn signals, ambient temperature monitors, and horn assembly nodes. It features a specialized flat-to-round 'D-shape' alignment profile with external latching rails that seamlessly guide and snap-lock into its matching female counterpart, establishing a high-retention connection resilient to severe under-hood thermal cycles and structural chassis vibration. Engineered to meet strict VAG factory guidelines, its uncompromised wire-entry port system seals tightly when paired with individual silicone wire cavity seals, completely blocking road spray, salt crusting, engine oils, and fine grit ingress. Highly susceptible to mounting tab breakage or shroud cracking if field technicians attempt forced extraction without fully depressing the female side's integrated release rocker trigger.

Technical Attributes:

- Manufacturer Part Number: 1J0973802 / 1J0 973 802 (Brand: VAG / Genuine Factory OEM Automotive Class Equivalent)

- Product Series Taxonomy: 1.5mm Sealed Connector Series Interconnect Family

- Configuration: 2-Position / 2-Way Male Plug, Single-Row 1x2 Linear Layout

- Physical Footprint Geometry: Signature VAG D-shape flat-top rounded-bottom housing block profile

- Contact System Terminal Envelope: Custom-engineered to shield standard 1.5mm nominal blade width clean-body male tab crimp pins (Micro-Timer series equivalent)

- Connector Style: Male Plug Housing for Male Tab Contacts (Free-Hanging Inline Harness Interface Plug)

- Fastening & Locking Architecture: Features integrated external slide-locking guide rails on the outer shroud casing

- Environmental Sealing Level: High-performance waterproof and dustproof isolation certified for engine bay, lower wheel arch, and underbody chassis placement

- Secondary Locking System: Equipped with a built-in internal terminal position assurance guide to eliminate pin back-out under loom harness pull stress

- Base Structural Compound: Premium Glass-Reinforced Polybutylene Terephthalate (PBT GF) engineering polymer for maximum dimensional memory, thermal tracking resistance, and chemical toughness

- Color Profile: Factory Standard Jet Black housing assembly block

- Low-Voltage Circuit Threshold: Engineered for standard vehicle electronic low-voltage signaling networks operating below 32V DC continuous

- Operational Thermal Window: Severe-duty engine bay envelope certified to maintain material elasticity from -40°C up to +125°C

- Target Male Terminal Contacts (Not Included): Precision optimized to accept standard 1.5mm series micro-crimp tab pins (requires matching single-wire cavity rubber seals to maintain full IP-rated waterproof isolation)

- Mating Counterpart Interface: Pairs seamlessly inline as the direct male partner to matching VAG 2-way female sealed harness connectors (OEM part number 1J0973702)

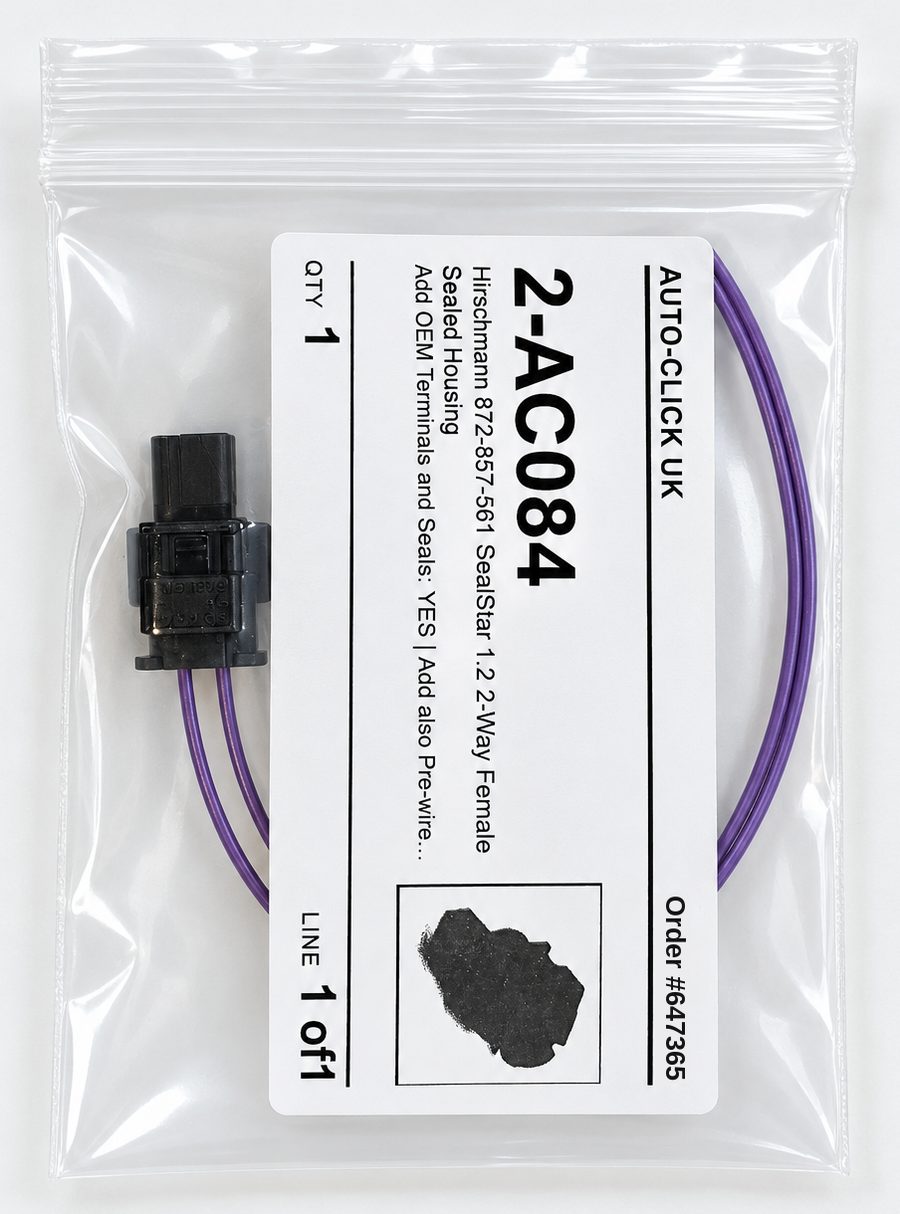

- Commercial Access: Available as loose individual housing shells or convenient trade repair kit packages including matching pins and seals. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
