192900-0055 ITT Cannon Style Circular Connector,

Terminals are included

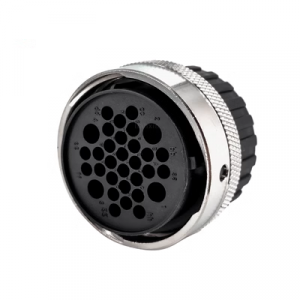

The Component: High-quality aftermarket replacement 32-way heavy-duty sealed female circular connector plug housing. Direct replacement alternative for ITT Cannon Trident Neptune Series 32-position (28 Signal + 4 Power contact layout) cable-mount straight receptacle socket casing (Black-Silver / Polyamide Nylon Body / IP67 Sealed Design / Bayonet Coupling Ring / Shell Size 24 / Equivalent Cross-Ref: TN6S24-0428S1L / 192900-0055).

Applications & Fitment: Engineered as a direct-fit, cost-effective aftermarket replacement solution for restoring high-capacity power and signal networks in harsh operating environments. Built to exact dimensional specifications to replace damaged or deteriorated original equipment (OE) plugs across specialized commercial fleets, transit vehicles, agricultural equipment, marine electronics, and access platforms. Most notably relied upon by auto-electrical trade specialists as a budget-friendly bulkhead-to-loom inline plug swap for high-exposure engine bay harnesses, heavy chassis runs, and external diagnostic master links. Features a rugged bayonet coupling system with a robust metal locking ring to ensure identical retention stability and vibration resistance to the factory original. Highly vulnerable to rear rubber membrane seal tearing if contact pins are pushed or extracted using crude, un-profiled workshop alignment picks, or locking tab failure if cross-mating is forced without aligning the shell keyways.

Technical Attributes:

- Product Function: Aftermarket Replacement Female Box Socket Circular Plug Housing (Free-Hanging Inline Shroud)

- Target Equivalent Cross-Reference: Replaces ITT Cannon Part Number: 192900-0055 / 1929000055

- Industry Model Series Layout: Trident Neptune (TN) Series Style / Shell Size 24 / 24-0428 Insert Allocation

- Configuration: 32-Position / 32-Way Socket Housing (Mixed Matrix Layout: 28 Signal Positions + 4 Dedicated Power Tracks)

- Fastening & Mating Architecture: Rugged bayonet coupling mechanism with a heavy-duty metal locking ring for an audible, positive lock

- Base Structural Compound: Premium High-Grade Impact-Modified Polyamide (Nylon) engineering polymer meeting strict UL94 V-0 flammability standards

- Color Profile: Industrial Matte Black Body with Silver-Tone Metallic Accents

- Ingress Protection Sealing Level: IP67 equivalent rated (Dust-tight, waterproof, and splashproof protection when fully coupled); features an integrated pierceable rear rubber wire-retention sealing membrane

- Wire Insulation Outer Diameter Limits for IP67 Maintenance: Signal paths accept 1.70mm to 2.70mm insulation envelopes; Power tracks accept 2.70mm to 4.00mm insulation envelopes smoothly

- Circuit Performance Thresholds: Operating voltage threshold rated up to 250V AC RMS; Base insulation resistance verified at 5000 MΩ Minimum at 500V DC

- Current Capacity Allocation: Signal positions support up to 13A continuously; Power positions support up to 30A maximum per pole depending on target wire gauge sizing

- Mating Mechanical Lifespan: Severe-duty internal retention structural geometry certified for up to 500 full mating/unmating cycles

- Operational Thermal Window: Wide-range industrial environmental parameter engineered to handle extreme cycles from -55°C up to +105°C

- Target Female Socket Contacts (Not Included): Fits standard replacement Trident Series crimp or solder cup female socket contacts, including standard T2P/T3P 16-18 AWG tin-plated runs (such as T2P16FC1LT or T2P16FC1ST) and 20-22 AWG arrays (such as T2P20FC1LT)

- Included Pack Accessories: Delivered as a 3-piece assembly bundle comprising 1 Connector Main Shell, 1 Wire Seal Grommet, and 1 Retention Compression Nut

- Mating Counterpart Interface: Pairs seamlessly inline as the direct female partner to matching original or aftermarket Trident Neptune series size 24 panel-mount plugs, chassis sockets, or matching male pin inline receptacles
