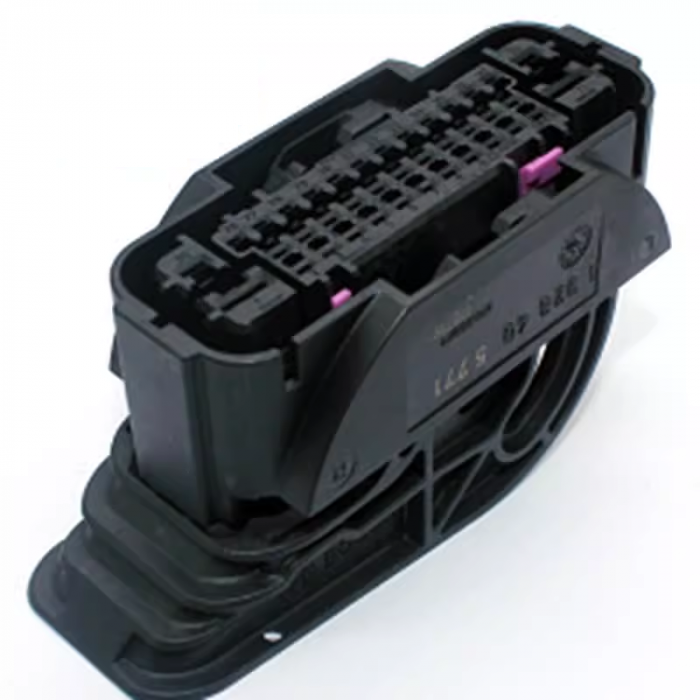

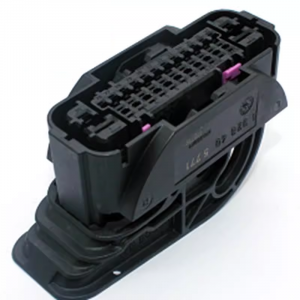

ORIGINAL BOSCH 1928405771

38 WAY AUTOMOTIVE CONNECTOR

EuCon 38P-CB / Contact Housing / Exit Left / Code 2

Manufacturer Bosch

Product Type Contact Housing

Code 2

Blade width 1.5mm

2.8mm

4.8mm

Connection System Wire-to-Device

Gender Female

Sealed connection Yes

Primary Locking (Terminal) Clean-body

Colour black

Body Material PA66-GF

Length 94.7mm

Width 36.4mm

Height 48.7mm

Vibration Resistance Car body

Vibration strength 5G

Temperature range, min. -40°

Temperature range, max. 125°

Terminal Sealing Single wire seal

Type of seal (connector) radial seal

Type of seal (cable) single wire seal

Type of locking mechanism (connector) lever

Secondary locking Yes

Additional features version for Bosch Terminals Clean-Body (BTC)

TERMINALS ARE NOT INCLUDED
