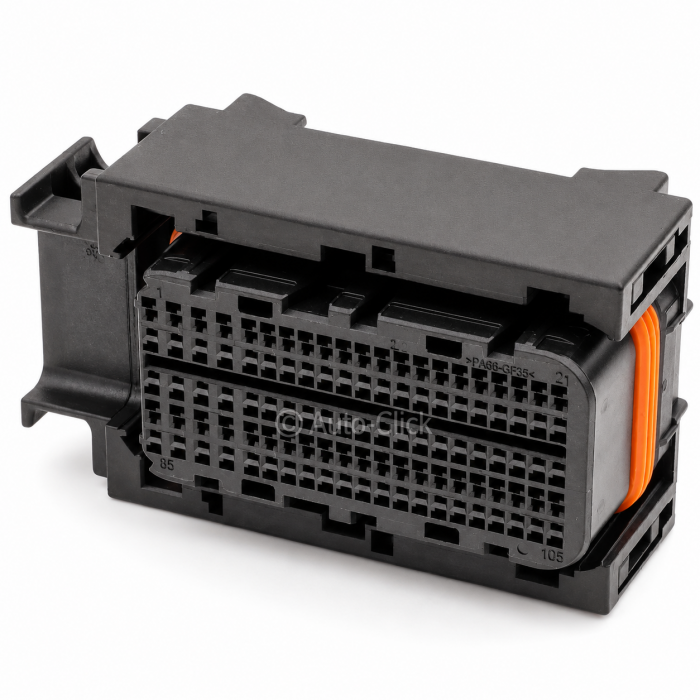

Original Bosch 1928405455 105 way header

The Component: Genuine Bosch high-performance heavy-duty ECU harness plug housing. 196P EMS (Engine Management System) Series taxonomy / 105-position multi-row high-density female contact casing / Code 1 Standard Keying Profile (Jet Black / Premium Glass-Reinforced PA66 / Sealed Waterproof / Hybrid 105-Pin Configuration / Engine-Side Harness Interface Plug / Component Variant Alias: 1-928-405-455 / Global Order Reference: 1928405455).

Applications & Fitment: Engineered as a premium, original equipment (OE) heavy-duty engine control unit (ECU) harness plug designed explicitly for complex powertrain management wiring networks. This 105-pin female contact housing is a foundational commercial vehicle and industrial loom staple—prominently integrated across major heavy transport platforms where it typically mounts directly alongside its 91-way vehicle-side counterpart (1928405452) to form a unified 196-pin module interface. It features an integrated mechanical slide-locking lever mechanism that pulls the connector securely onto the main ECU pin header, establishing a low-tolerance, gas-tight mating fit that entirely eliminates contact path fretting under harsh structural vibration and severe engine compartment harmonics. Engineered to meet strict tier-1 heavy-vehicle validation parameters, its hybrid 5-row cavity configuration uses high-grade radial mat seals and specialized internal sealing plates to form an absolute environmental barrier against high-pressure washdowns, road spray, salt crusting, and hot engine fluids. Highly vulnerable to slide rail binding or locking lever fracture if field service technicians attempt forced lever rotation without verifying that the primary internal slide carriage is clean and completely un-obstructed.

Technical Attributes:

- Manufacturer Part Number: 1928405455 / 1-928-405-455 (Brand: Bosch / Heavy-Duty Genuine Component Class)

- Product Series Taxonomy: 196P EMS (Engine Management System) Interconnect Family

- Configuration: 105-Position / 105-Way Female Contact Plug, Multi-Row (5-Row) High-Density Grid Layout

- Keying Profile Architecture: Code 1 physical keyway alignment guide layout

- Hybrid Contact Cavity Blueprint: Dual-spec layout optimized to combine low-current Matrix 1.2mm signal terminal paths alongside heavy-gauge BTL 2.8mm power delivery circuits

- Connector Style: Female Harness Contact Plug (Engine-Side Control Unit Interface Loom Connector)

- Fastening & Locking Architecture: Integrated heavy-duty mechanical slide slider / lever locking system

- Environmental Sealing Level: High-performance waterproof and dustproof isolation utilizing integrated internal radial mat seals for severe-duty chassis and engine mounting positions

- Physical Footprint Dimensions: 106.60mm Overall Length x 48.00mm Outer Base Width x 36.55mm Housing Height profile

- Base Structural Compound: Premium Glass-Filled Polyamide (PA66 GF) engineering polymer for maximum thermal tracking resistance, dimensional accuracy, and chemical toughness

- Color Profile: Factory Standard Jet Black housing assembly block

- Operational Thermal Window: Severe-duty engine bay environment certified to maintain material stability from -40°C up to +130°C

- Associated Service Components (Not Included): Fully compatible with Bosch internal secondary locking plates (Signal lock: 1928405457) and holding plate 1928405453

- Target Terminal Contacts (Not Included): Precision optimized to accept genuine Bosch Matrix 1.2mm series female sockets and heavy-gauge BTL 2.8 series crimp terminals

- Mating Counterpart Interface: Mates seamlessly inline or to device headers as the engine-side partner to the corresponding 196P engine management system ECU pin header interface

- Commercial Access: Available as loose individual main housing blocks or complete trade repair distribution packages. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
