1928405217

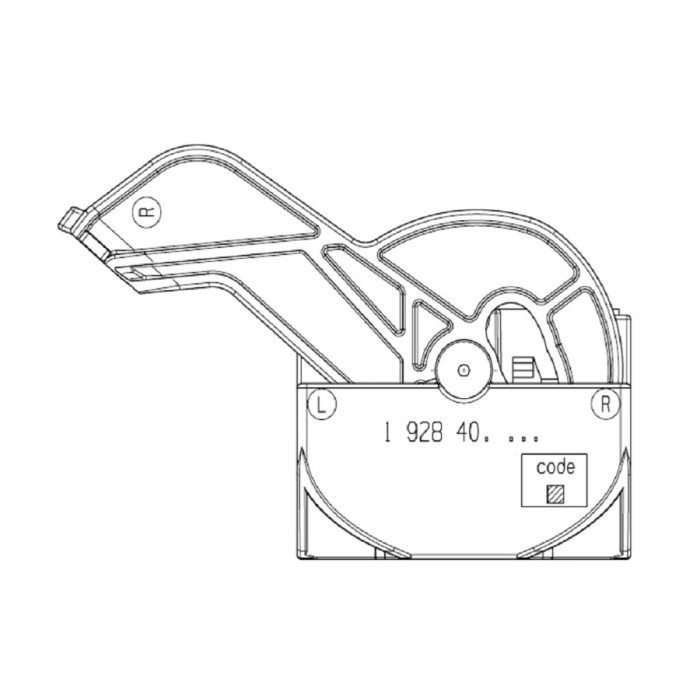

56P-V EMS / Contact Housing 56P-B / Exit right / Code 13

Manufacturer Bosch

Product Type Contact Housing

Number of positions 56

Code 13

Blade width 0.6mm

1.5mm

Connection System Wire-to-Device

Gender Female

Sealed connection Yes

Primary Locking (Terminal) Clean body and lance

Colour black

Body Material PA 66 GF

Length 40.85mm

Width 49.1mm

Height 46.5mm

Minimum pitch 2.75mm

Vibration Resistance Engine Compartment

Vibration strength 3G

Temperature range, min. -40°

Temperature range, max. 105°

Terminal Sealing Mat seal

Type of seal (connector) radial seal

Type of seal (cable) radial seal

Type of locking mechanism (connector) lever

Secondary locking Yes

TERMINALS ARE NOT INCLUDED
