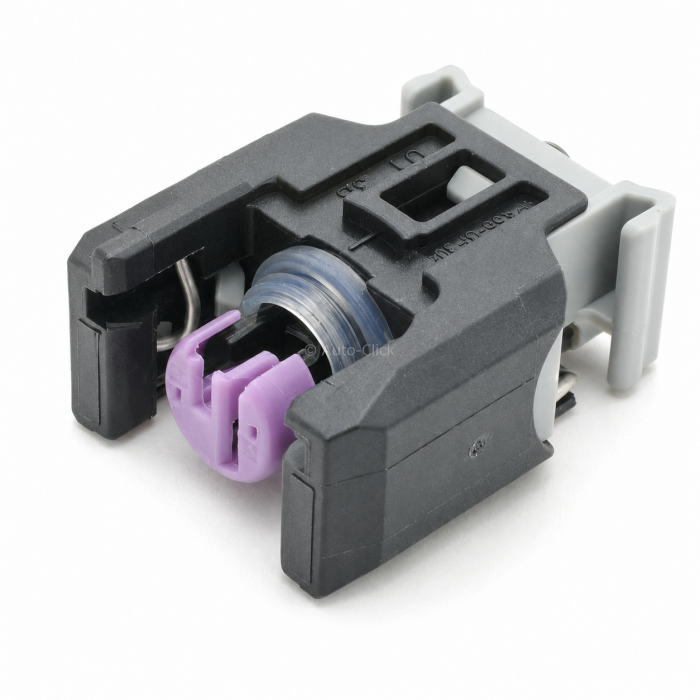

Delphi 13816706 2-Way Female DSQ 1.5 Injector Connector Housing
Our part2-AC018 RoHS
Complete your connector
Matching terminals, seals and mating parts for this housing.
Terminals 1
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
Seals and plugs 1
Select by wire outside diameter. Plug any unused cavities.
Price isn't everything
This is a genuine DELPHI part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
Product description
The Component: Genuine Delphi / Aptiv DSQ Series 2-position female socket housing / 1.5mm (DSQ) terminal system waterproof automotive connector plug / Single-row 1x2 horizontal cavity layout / Integrated top locking push-latch / Internal silicone perimeter seal / Molded from heat- and chemical-resistant PBT/PA66 resin / Component Part Number: 13816706 / Alternate OEM Identifiers: Aptiv 13816706 / Delphi 13816706 / DSQ 1.5 2-Way Female Injector Plug.
Applications & Fitment: High-reliability waterproof female electrical connector plug engineered specifically for diesel common rail fuel injector systems and harsh engine bay environments. Heavily specified across European vehicle platforms—including Mercedes-Benz CDI Euro 5 (Sprinter, C-Class, E-Class, ML, GLK), Dacia (1.5 dCi), Skoda (1.2 TDI), and Jeep (2.2 CRD)—for Delphi v2 DFI1.5 piezo/solenoid injectors. Accepts Delphi DSQ 1.5 female crimp terminals and individual wire seals (wire range 0.50–1.00mm²). Features a robust latching arm to ensure continuous electrical contact under extreme engine vibration and thermal cycling (-40 to 125 degrees Celsius). Essential stock for diesel specialists, auto-electricians, harness repair builders, and automotive trade distributors.
Technical Attributes:
- OEM Part Number: 13816706 (Manufacturer: Delphi / Aptiv)
- Product Component Classification: Sealed Female Fuel Injector Housing
- Connector Family Series: Delphi / Aptiv DSQ 1.5 Series
- Total Position Count: 1x2 Single-Row (2-Way / 2-Pin Female Plug)
- Cavity Layout Matrix: 1 Row x 2 Columns Horizontal Configuration
- Terminal System Compatibility: Accepts Delphi / Aptiv DSQ 1.5mm Female Crimp Terminals (0.50–1.00mm² / AWG 20–18)
- Locking System Integrity: Top Primary Latching Arm Lever
- Ingress Protection Status: IP67 Weatherproof / Waterproof Sealed Architecture
- Structural Material Base: High-Temp Glass-Reinforced Thermoplastic (Black)
- Outer Dimensions: Approx. 35.5mm L x 16.0mm W x 27.9mm H
- Operating Temperature Limit: -40 to 125 degrees Celsius
- Commercial Procurement Status: Supplied as an individual unpopulated 2-way female housing assembly. Female crimp terminals, wire seals, and complete repair kit variants are available separately. Multi-tier trade volume discounts apply automatically at checkout.
