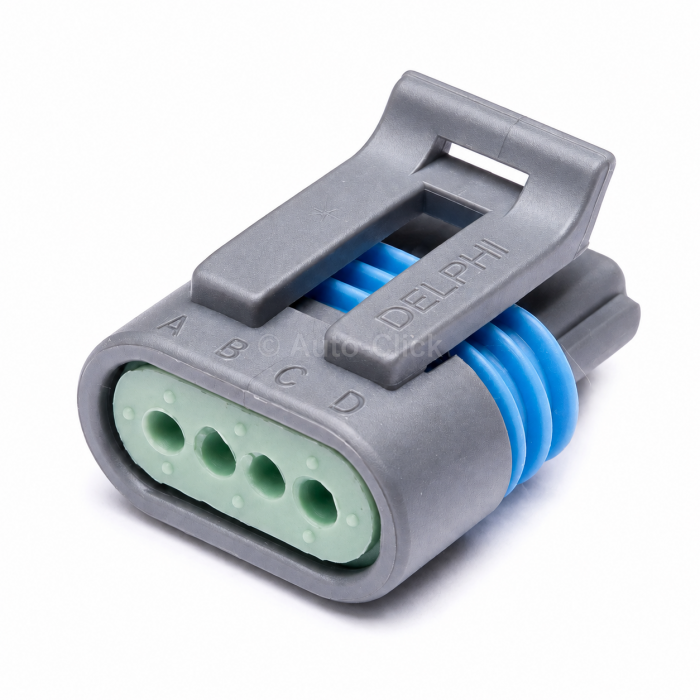

Delphi Aptiv 12162834 Metri-Pack 150 4-Way Female Connector Housing

The Component: Genuine Aptiv / Delphi OEM 4-position female socket housing / Metri-Pack 150 Sealed Series waterproof automotive connector plug / Compact 1x4 single-row inline cavity layout / External top primary latching arm with integrated silicone circumferential interface seal and secondary terminal position assurance lock slot / Molded from high-impact, heat- and chemical-resistant Polyamide 66 (PA66) resin / Component Part Number: 12162834 / Alternate Identifiers: Aptiv 12162834 / Delphi 12162834 / Metri-Pack 150 4-Pin Female Plug / GM 12162834 / 1.5mm 4-Way Sensor Plug / Oxygen Sensor Connector / O2 Sensor Plug.

Applications & Fitment: High-reliability waterproof female electrical connector housing engineered for engine bay, powertrain, and chassis sensor sub-harnesses across General Motors (GM), Chrysler, commercial vehicle, agricultural, marine, and industrial equipment platforms. Designed specifically for four 1.5mm female socket contacts (Metri-Pack 150 series) and individual silicone wire cavity seals on a single-row layout. Mates directly with male connector housing Aptiv / Delphi 12162833. Widely specified for heated oxygen (O2) sensors, mass air flow (MAF) sensors, ignition coil modules, electronic throttle controls, and chassis lighting extensions requiring full IP67 weatherproofing integrity. Engineered to withstand continuous engine vibration, high electrical current loads (up to 14A continuous), fluid exposure (oils, fuel, washer fluid), and severe thermal cycling (-40 to 125 degrees Celsius). Essential stock for auto-electricians, GM specialists, marine engineers, commercial fleet technicians, harness builders, and trade distributors.

Technical Attributes:

- OEM Part Number: 12162834 (Manufacturer: Aptiv Connection Systems / Delphi Electrical)

- Product Component Classification: 1.5mm Female Socket / Receptacle Connector Housing Device

- Connector Family Series: Aptiv Metri-Pack 150 Sealed Series (1.5mm Blade System)

- Connection Type: Wire-to-Wire / Wire-to-Device Inline Female Receptacle

- Total Position Count: 4-Way / 4-Pin Female Plug

- Cavity Layout Matrix: 1 Row x 4 Columns Inline Configuration Profile

- Compatible Terminal Blade Width: 1.50 mm Female Socket Contacts (Metri-Pack 150 Pull-To-Seat / Standard Receptacles)

- Terminal System Compatibility: Accepts Aptiv Metri-Pack 150 female crimp socket contacts (e.g., 12048074, 12045773 series), individual silicone wire seals (e.g., 12048086, 12048087 series), and TPA lock (12047948 / 12052634)

- Directly Mating Part Number: Aptiv / Delphi 12162833 (Metri-Pack 150 Sealed 4-Way Male Shroud Housing)

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (IP67 Rated / 14A Continuous Current Rating)

- Structural Material Base: Premium Grade Unfilled Polyamide 66 (PA66)

- Color Profile: Factory Solid Grey Body with Silicone Interface Seal

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 4-way female housing assembly with pre-fitted interface seal. Metri-Pack 150 female socket crimp contacts, individual wire seals, TPA locks, and mating male connector housing assemblies (12162833) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
