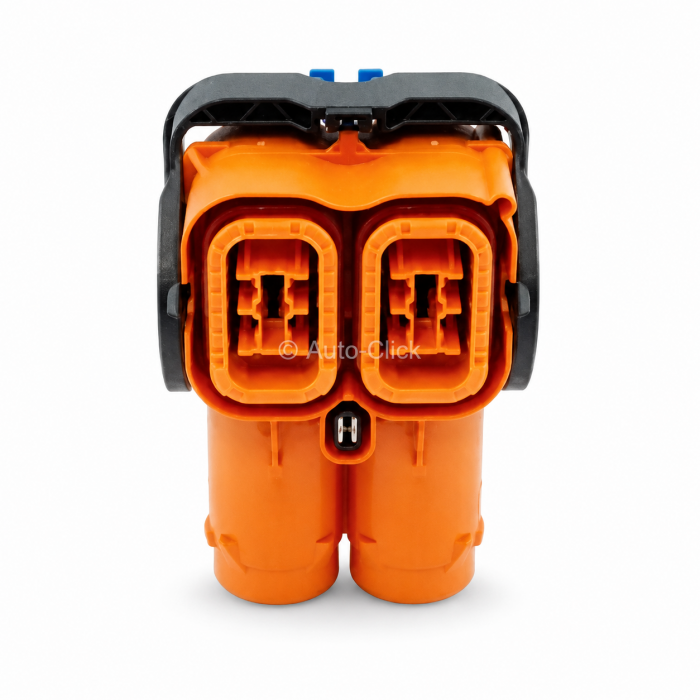

KOSTAL 10019942 KHV 600 2-Way HV Receptacle Housing

The Component: Genuine KOSTAL KHV 600 series 2-position high-voltage female receptacle connector housing / 2-way PLK 14.5 terminal contact system / Integrated HVIL (High Voltage Interlock Loop) safety architecture / Ergonomic mechanical locking lever / Key Code A keying configuration / Fully sealed IP67/IP6K9K weather-proof housing / Component Part Number: 10019942 / Alternate OEM Identifiers: KOSTAL 10019942 / KHV 600 Code A Receptacle.

Applications & Fitment: High-current, high-voltage (HV) power distribution connector designed specifically for electric vehicle (EV), hybrid powertrain, and battery energy storage system (BESS) applications. Engineered for main battery pack output feeds, traction inverters, DC-DC converters, and fast-charging interfaces utilizing PLK 14.5 socket contacts (up to 50mm2 cable sizes). Features an integrated HVIL circuit to automatically signal high-voltage disengagement prior to terminal separation, preventing dangerous arc flash. The robust, lever-actuated locking handle ensures low-effort, vibration-proof mating under harsh automotive under-bonnet and chassis environments (-40 to 140 degrees Celsius). Essential stock for EV conversion specialists, high-voltage harness manufacturers, and commercial auto-electrical distributors.

Technical Attributes:

- OEM Part Number: 10019942 (Manufacturer: KOSTAL)

- Product Component Classification: High-Voltage Female Receptacle Housing w/ Lever

- Connector Family Series: KOSTAL KHV 600 / PLK 14.5 Series

- Total Position Count: 2-Way Power Contacts + Integrated HVIL Interlock

- Keying / Mechanical Coding: Code A (Standard Keyway Configuration)

- Terminal Contact System: Accepts KOSTAL PLK 14.5 High-Current Receptacle Terminals

- High Voltage Interlock (HVIL): Integrated Safety Interlock System Included

- Current & Thermal Limits: Rating up to 300A (@20°C with 50mm² conductor) / -40°C to +140°C

- Ingress Protection Status: IP67 / IP6K9K Fully Sealed High-Voltage Architecture

- Material & Color Base: High-Visibility Orange Glass-Reinforced Thermoplastic with Black Locking Lever

- Commercial Procurement Status: Supplied as an individual unpopulated 2-way HV receptacle connector housing assembly with locking lever. PLK 14.5 crimp contacts, cable strain reliefs, and mating header assemblies are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
