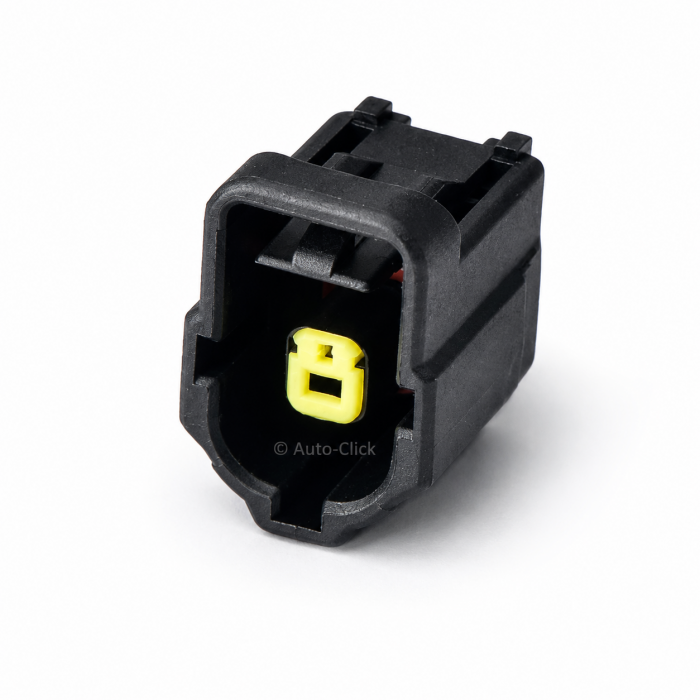

TE Connectivity 184042-1 1-Way Female Sealed SSC Connector

The Component: Genuine TE Connectivity / AMP high-performance sealed female socket connector plug housing. Sealed Sensor Connector (SSC) System Series taxonomy / 1-position single-way inline female casing / Code A Keying Profile (Solid Black / PBT GF15 / Sealed / 1-Way Grid Configuration / Female Inline Interface Plug / Component Alias Code: 184042-1 / Global Order Reference: 184042-1).

Applications & Fitment: Engineered as a heavy-duty, factory original equipment (OE) single-line wire-to-wire or wire-to-device waterproof connection plug designed to deliver robust circuit isolation in high-exposure operational zones. This 1-pin female socket block is heavily relied upon across global automotive, marine engine, and rugged agricultural wiring looms—frequently utilized for critical isolated sensor runs. It encounters extensive deployment within Ford platform configurations (often cross-referencing to factory service pigtail kits 3U2Z-14S411-MHA / WPT-439 or 3U2Z-14S411-UHA / WPT-538) to process high-reliability sensor signals under harsh conditions. Built to withstand aggressive fluid exposure, high-vibration engine bay harmonics, and dirt contamination, it preserves clean signal delivery to fluid pressure switches, oil level sensors, external temperature probes, and single-lead powertrain actuators. Highly vulnerable to top-mounted locking tab fracture or alignment slot distortion if field service mechanics attempt to force separation using generic flathead screwdrivers instead of correct secondary lock release methodologies.

Technical Attributes:

- Manufacturer Part Number: 184042-1 (Brand: TE Connectivity / AMP Brand Automotive Interconnect)

- Product Series Taxonomy: Sealed Sensor Connector (SSC) System Family

- System Mechanical Keying: Code A Specification (Color-coded Solid Black Body Matrix)

- Configuration: 1-Position / 1-Way Female Socket Plug, Single-Circuit Straight Inline Layout

- Cable Exit Trajectory: 184042-1 incorporates a clean 180-degree straight rear wire path exit alignment

- Connector Style: Socket Housing for Female Receptacles (Free-Hanging Inline or Device Plug Shroud)

- Fastening & Locking Architecture: Features a heavy-duty integrated top-mounted mechanical latching arm that locks with an audible click onto mating male tabs

- Secondary Locking System: Equipped with a pre-assembled high-visibility yellow front-loading terminal position assurance (TPA) alignment plate to ensure zero contact back-out

- Mating Terminal Tab Envelope: Custom-engineered to shield standard 1.8mm nominal tab width terminal styles

- Base Structural Compound: Premium PBT GF15 (15% Glass Fiber Reinforced Polybutylene Terephthalate) for optimal structural stability, oil resistance, and impact durability

- Color Profile: Factory Solid Black Body with integrated yellow front accent plate

- Environmental Sealing Level: High-performance waterproof and dustproof performance utilizing a robust internal perimeter silicone face seal and rear wire entry protection

- Low-Voltage Circuit Threshold: Nominal architecture engineered to handle automotive low-voltage networks up to a maximum rating of 125 VDC / VAC continuous

- Continuous Current Threshold: Field-certified to carry continuous electrical current loads up to a maximum 17.0 Amps depending on conductor diameter

- Operational Thermal Window: Severe-duty powertrain envelope certified to maintain structural elasticity from -40°C up to +125°C

- Target Female Terminal Contacts (Not Included): Precision optimized to accept standard TE SSC series 1.8mm female receptacle crimp sockets

- Associated Wire Sealing Grommets (Not Included): Requires individual single-wire cavity seals matched to target wire insulation outer diameters to maintain IP-rated sealing

- Mating Counterpart Interface: Pairs seamlessly inline as the direct female partner to matching 1-way male TE Connectivity cap housings, specifically part number 184044-1

- Commercial Access: Available as loose individual housing pieces, or comprehensive trade repair kits. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
