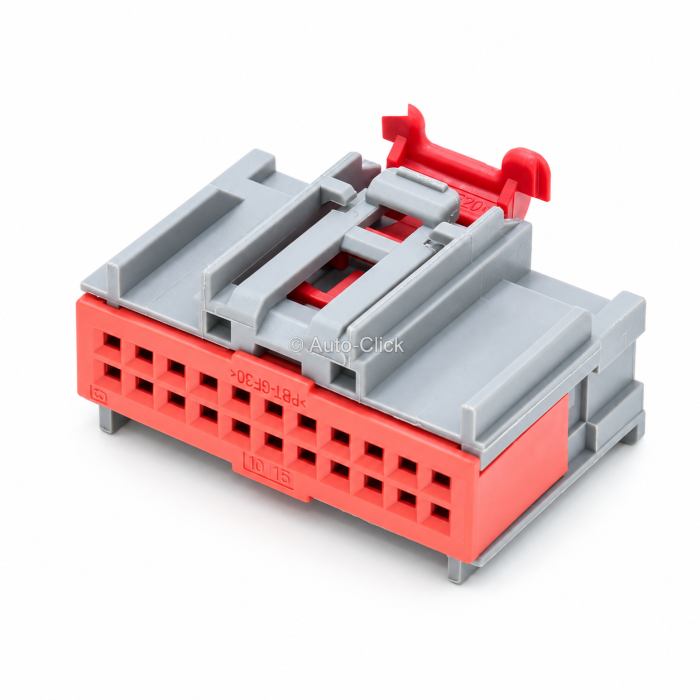

TE Connectivity 1-1419158-7 22-Way Female Connector Housing

The Component: Genuine TE Connectivity / AMP OEM 22-position female socket housing / Automotive Unsealed Series 22-Way hybrid connector plug / Dual-row 2x11 cavity layout / Primary locking lever with secondary terminal position assurance (TPA) lock mechanism / Molded from high-grade thermoplastic resin / Component Part Number: 1-1419158-7 / Alternate OEM Identifiers: TE 1-1419158-7 / 114191587 / AMP 22-Pin Female Plug / 22-Way ECU Connector / 0.64mm 1.5mm Hybrid Unsealed Socket Housing.

Applications & Fitment: High-density unsealed female electrical connector housing engineered for cabin interiors, dashboard wiring, body control modules (BCM), door harness junction points, and electronic control units across European and global OEM vehicle platforms. Features a dual-row hybrid pin configuration optimized for combined signal and low-power circuit distribution. Designed specifically to hold 22 female receptacle terminals with integrated secondary locking enforcement to prevent pin back-out. Mates directly with corresponding 22-way male headers and PCB pin headers. Ideal stock for auto-electricians, ECU diagnostic specialists, harness repair technicians, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 1-1419158-7 (Manufacturer: TE Connectivity / AMP)

- Product Component Classification: Female Socket / Receptacle Connector Housing Device

- Connector Family Series: AMP / TE Automotive Unsealed ECU Series

- Total Position Count: 22-Way / 22-Pin Female Plug

- Cavity Layout Matrix: Dual Row (2 x 11 Configuration Profile)

- Connection Type: Wire-to-Board / Wire-to-Device / Wire-to-Wire Unsealed Female Plug

- Terminal System Compatibility: Accepts TE 0.64mm and 1.5mm series female crimp receptacle terminals

- Secondary Locking Feature: Integrated Terminal Position Assurance (TPA) Lock Clip

- Ingress Protection Status: Unsealed (Designed for In-Cabin / Protected Automotive Interiors)

- Structural Material Base: High-Performance Thermoplastic / PBT Assembly

- Operating Temperature Limit: -40 to 105 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 22-way female housing assembly. Crimp terminals, secondary lock components, and mating male board headers are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
